Application Examples
Application Examples
This se ction contains ways to use your instrument in both common and advanced troubleshooting tasks.
Taking Simple Measurements

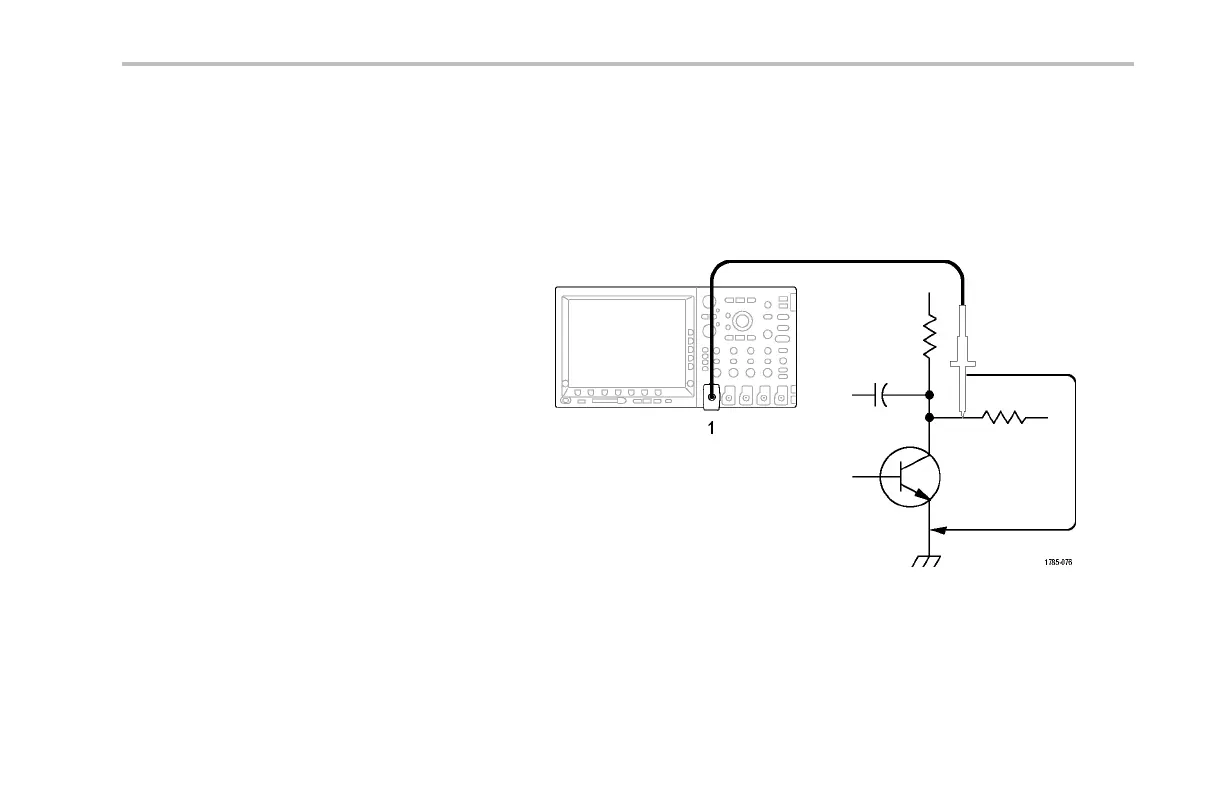

If you need to see a signal in a circuit, but
you do not know the signal amplitude or
frequency, connect the probe from chann el 1
of the oscilloscope to the signal. Then display
the signal and measure its frequ ency and
peak-to-peak amplitude.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 269
