Analyze Waveform Data
Customizing an Automatic Measurement
You can customize automatic measurements by using gating, modifying measuremen t statistics, adjusting the measurement
reference levels, or taking a snapshot.
Gating
Gating confines the m easurement to a certain portion of a w aveform. To use:

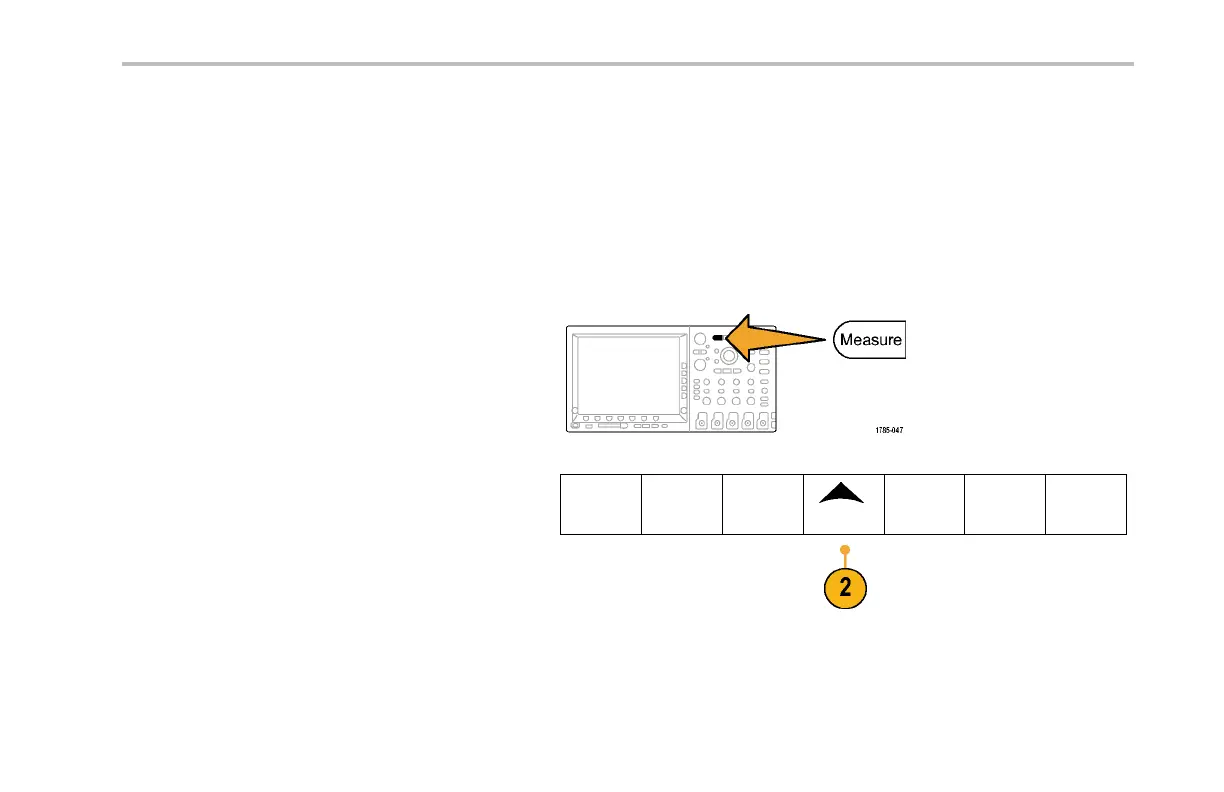

1. Push Measure.
2. Push More as many times as needed to select
Gating from the resulting pop-up menu.
Add Mea-
surement
Remove
Measure-
ment
Indicators
More
Bring
Cursors On
Screen
Configure
Cursors
MSO4000 and DPO4000 Series Oscilloscopes User Manual 199
