Acquire the Signal
4. If you chose Average, turn multipurpose knob
a to set the number of waveforms to average
over.
5. Push Record Length.
6. Push the side-bezel menu, record length
button.
10k points
Choose among: 1000, 10 k, 10 0 k , 1 M, and
10 M points.

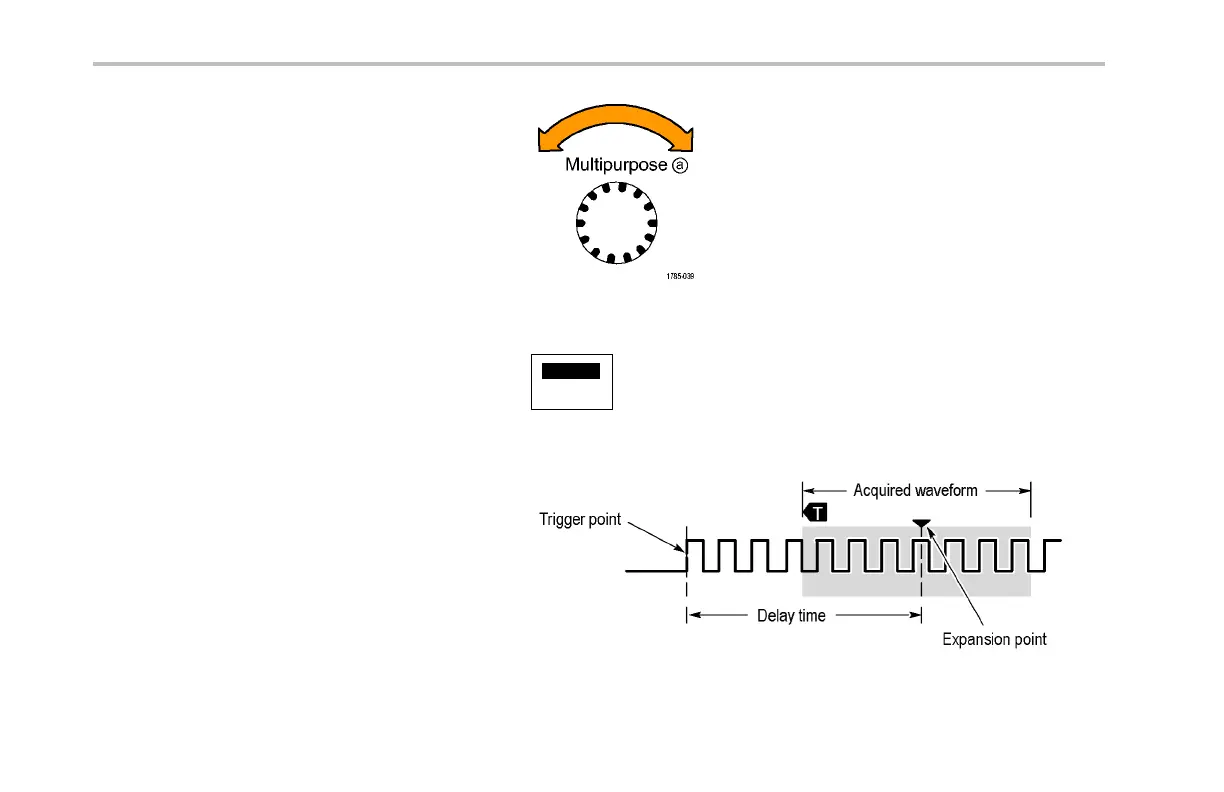

7. Push the lower-bezel Delay button to select
On when you want to delay the acquisition
relative to the trigge r event.
98 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
