Application Examples
To select the Rise Time measurem ent:

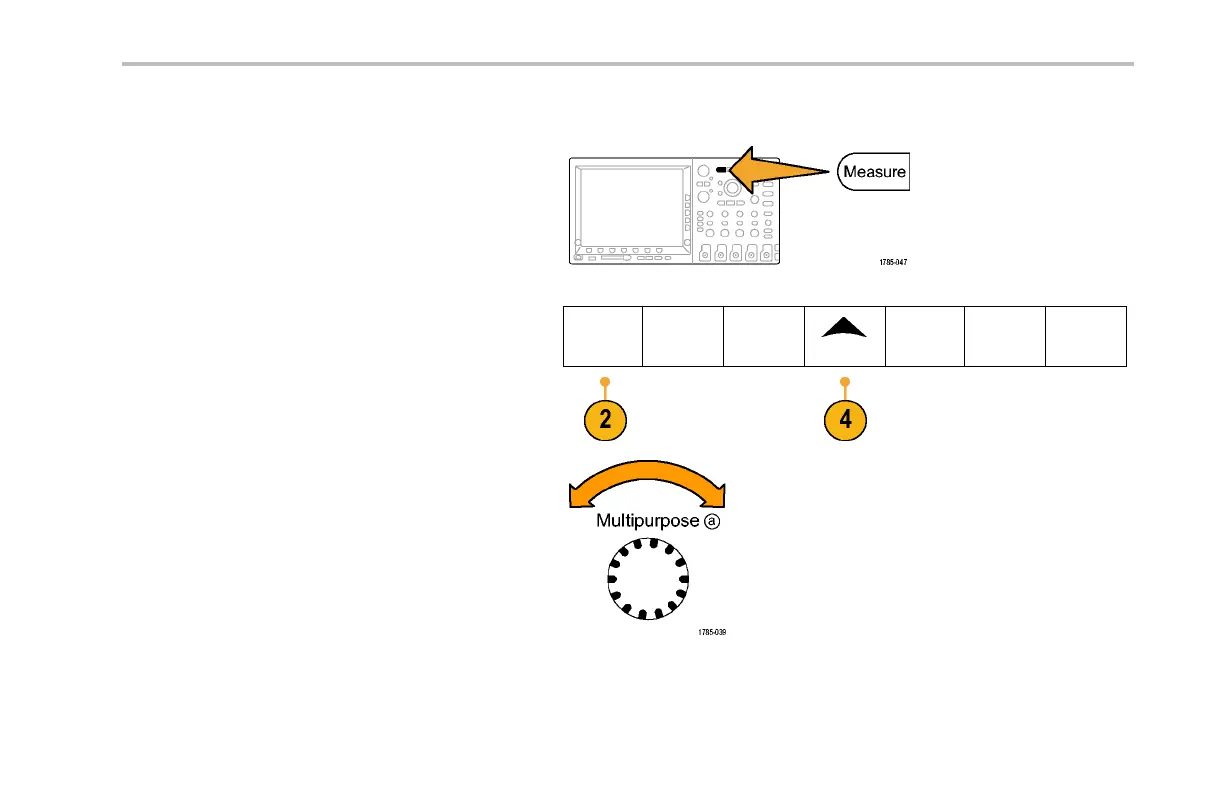

1. Push Measure.
2. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
More
Bring
Cursors On
Screen
Configure
Cursors
3. Turn multipurpose knob a to select the Rise
Time measurement. If needed, press Source
from the side menu and turn multipurpose knob
b to select the channel from which you want to
measure. Push OK Add Measure ment from
the side men u.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 277
