Application E xamp les
6. Push Slope and .
7. Turn the Trigger Level knob to adjust the
trigger level to a voltage midway be tween
the open and closed voltages of the replay.

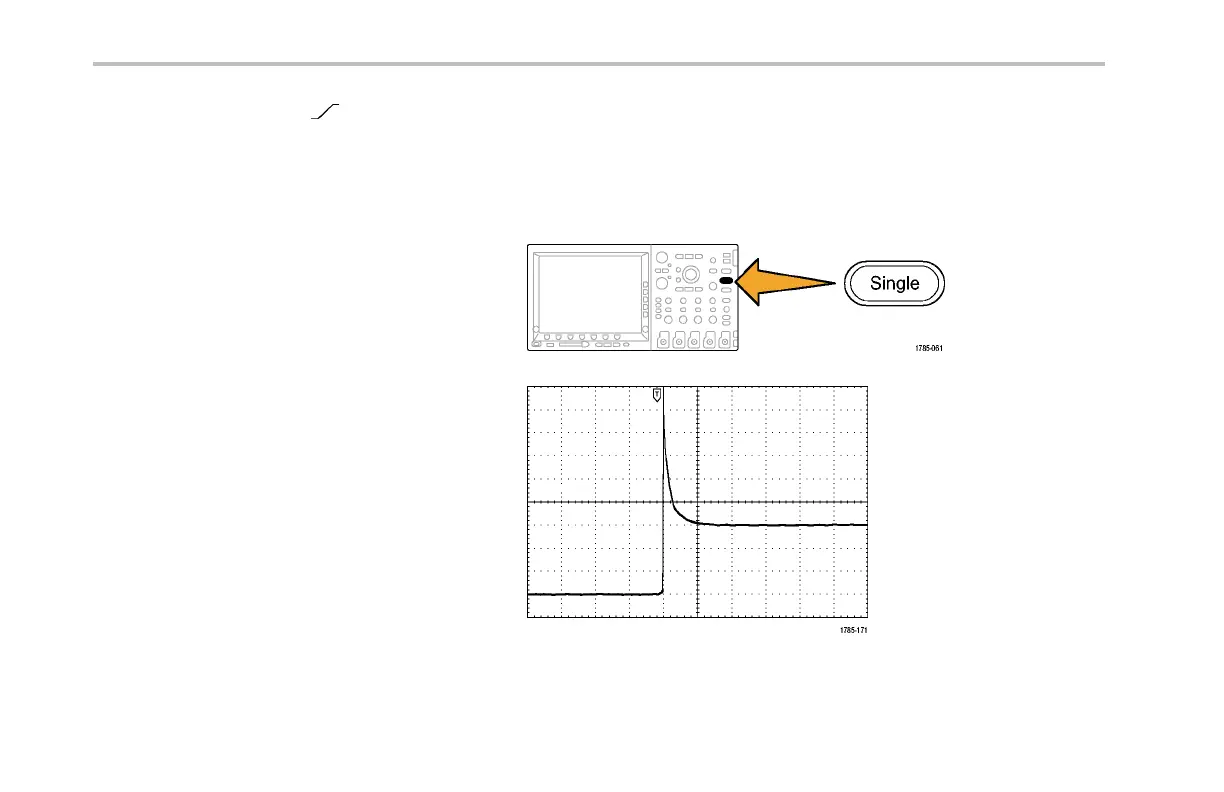

8. Push Single (single sequence).
When the relay opens, the oscilloscope
triggers and captures the event.
The Single sequence butt on disables auto
triggering so that only a valid triggered
signal is acquired.
298 MSO4000 and DPO4000 Series Oscilloscopes User Manual
