Get Acquainted with the Instrument

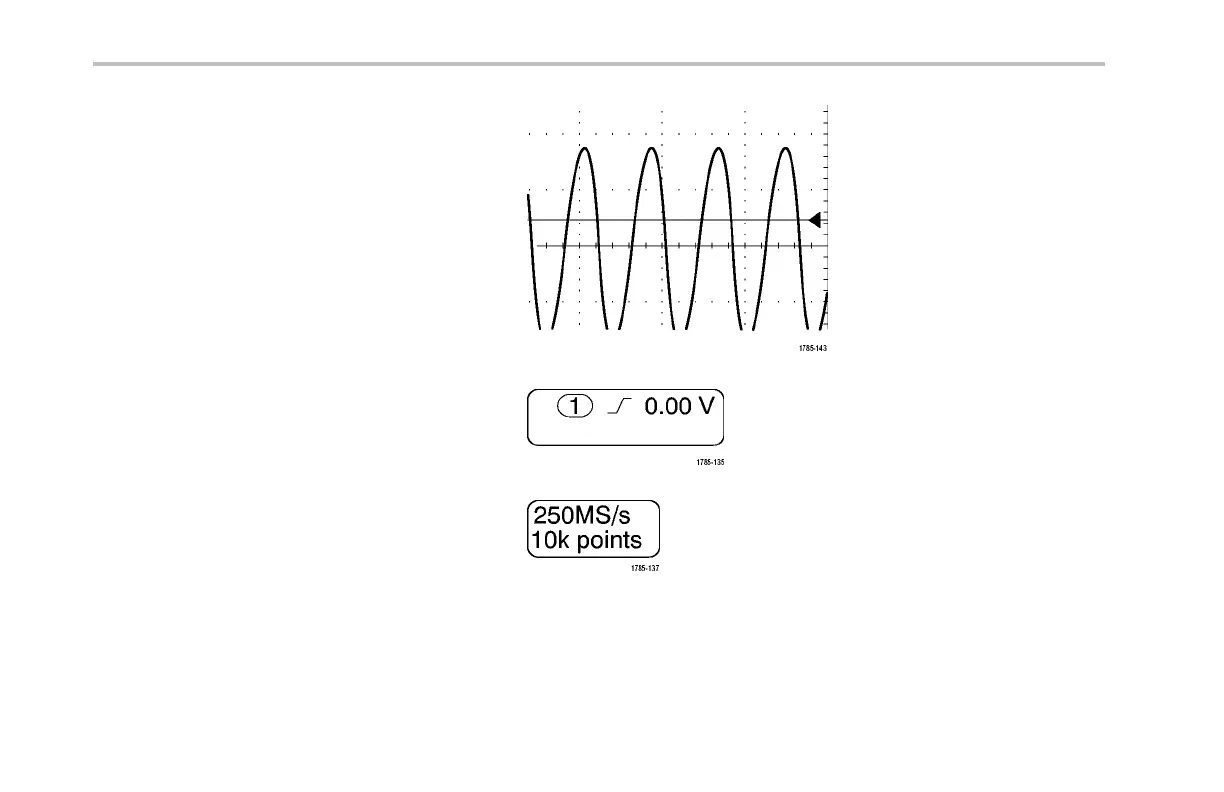

7. Thetriggerleveliconshowsthetrigger
level on the waveform. The icon color
corresponds to the trigger source color.
8. The trigger readout shows the trigger
source, slope, and level. The trigger
readouts for other trigger types show other
parameters.
9. The top line of t he record leng th/sampling
rate readout shows the sampling rate
(adjust with the Horizontal Scale knob).
The bottom line shows the reco rd length
(adjust with the Acquire menu).
72 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
