Search for error

Set up MIL-1553 search parameters

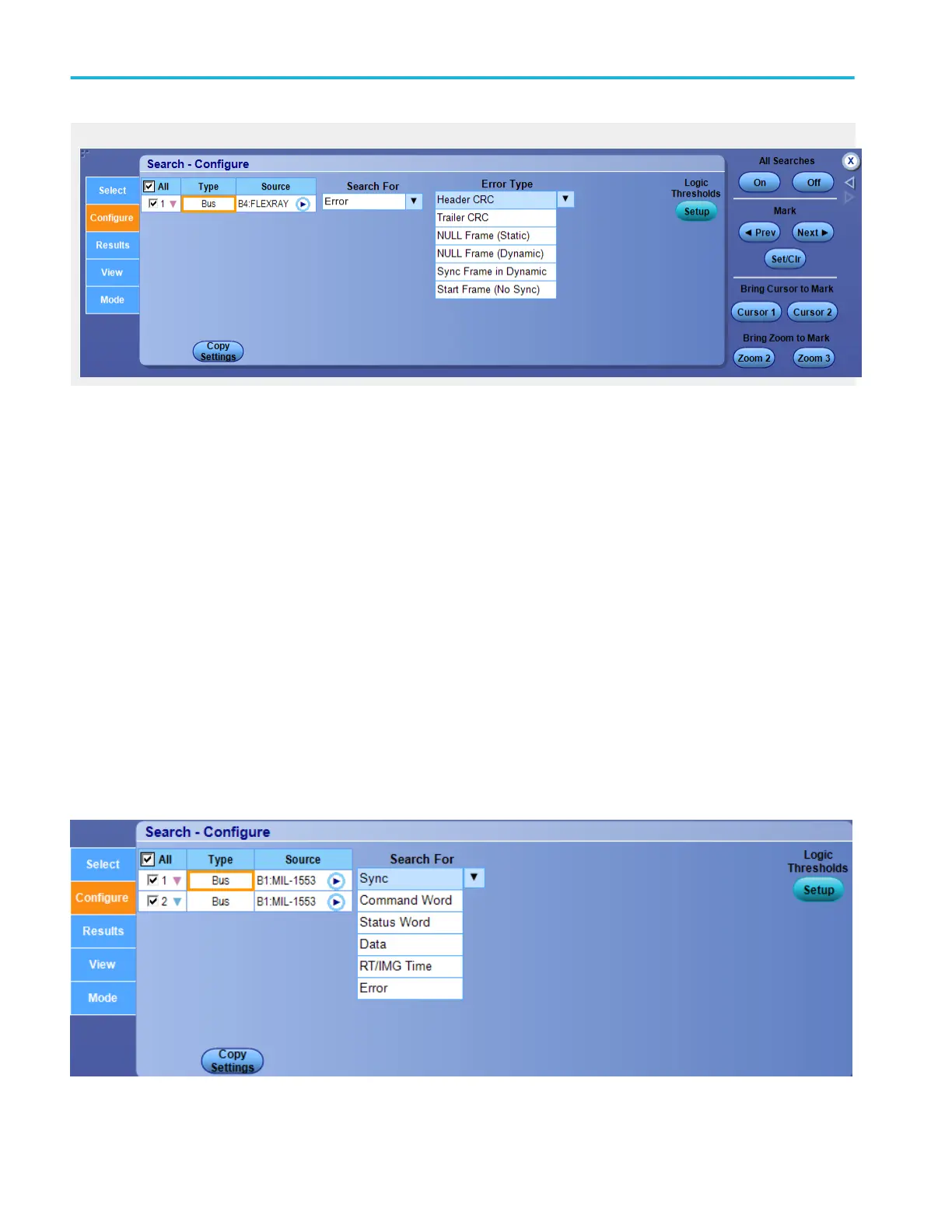

After setting up a MIL-1553 bus, go to the Analyze menu, select Search, and then select the Bus trigger type; then open the

Configure tab.

Overview

Use the controls to set up the MIL-1553 Bus parameters.

To use

For information on the controls, click the buttons.

■

Type

■

Source

■

Copy Settings

■

Search Parameters

■

Search / Mark Controls

Analyzing waveforms
