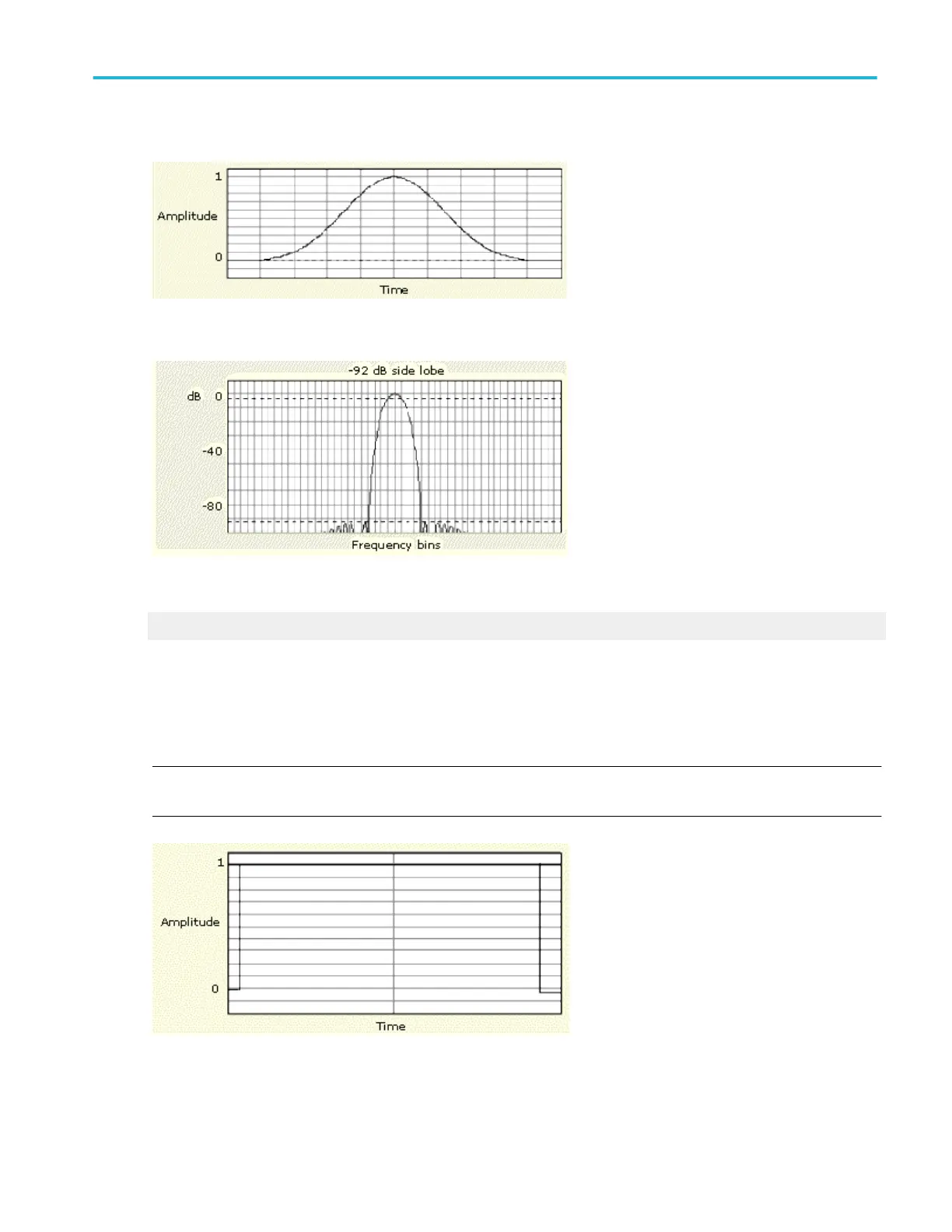

Blackman-Harris window

What do you want to do next?

Learn about using spectral analyzer windows.

Rectangular window

This window is equal to unity (see the next figure). This means the data samples in the gate are not modified before input to the

spectral analyzer.

NOTE. This window has the narrowest resolution bandwidth of any of the windows, but it also has the most spectral leakage and

the highest side lobes.
