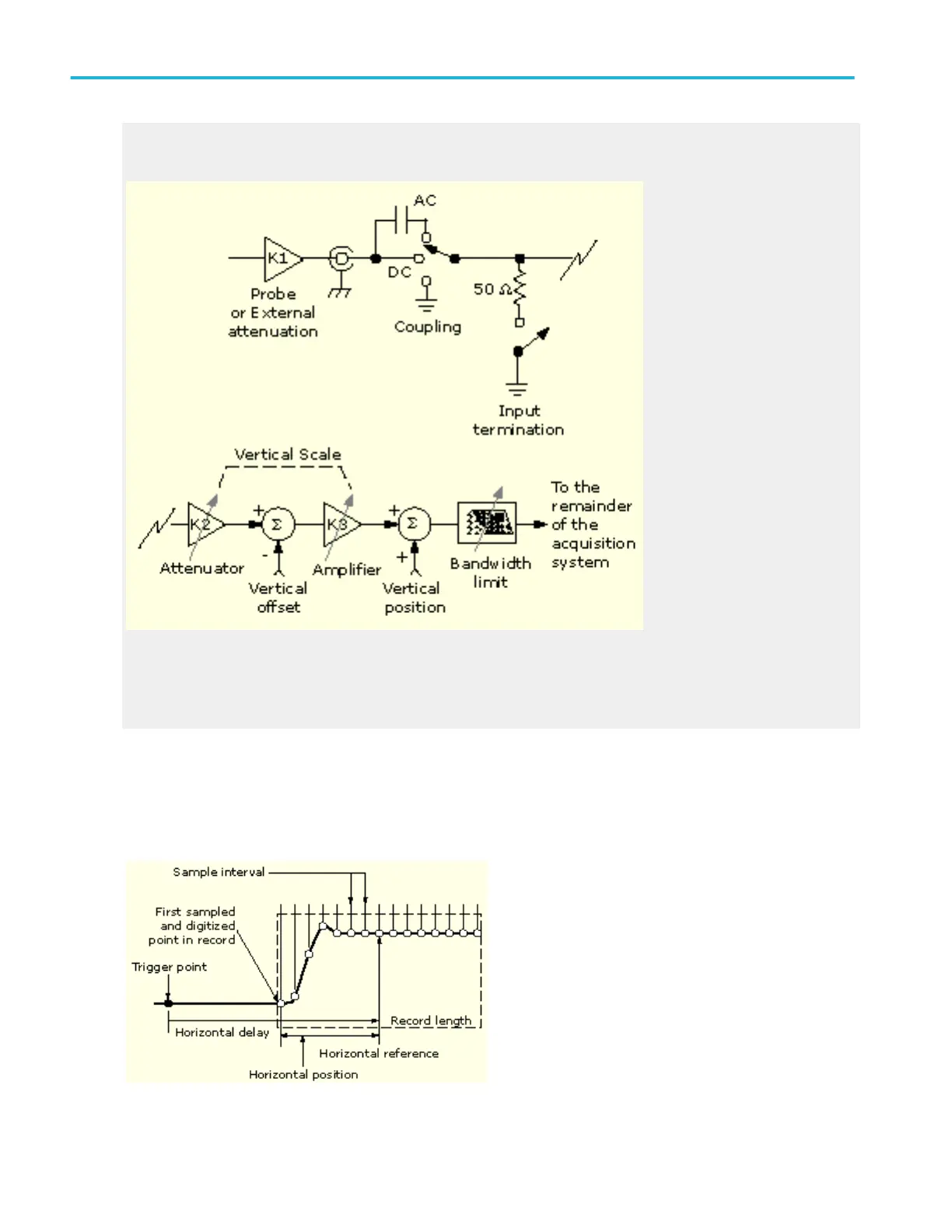

Signal connection

This diagram displays the signal connection model for each input channel.

What do you want to do next?

Learn more about coupling.

Learn more about the vertical acquisition system.

Sampling process

Acquisition is the process of sampling an analog signal, converting it into digital data, and assembling it into a waveform record,

which is then stored in acquisition memory. Sampling is the process that provides a waveform record per trigger event as shown

in the next figure.

The signal parts within the vertical range of the amplifier are digitized as shown in the next figure.

Oscilloscope reference

660 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
