To use. Select the A->B Seq tab to use the A Event (main) trigger with the B Event trigger to capture complex data.

For information on the controls, click the buttons.

■

Trigger Summary

■

A Only

■

A -> B Trig after Time

■

A -> B Trig on nth Event

■

Horizontal Delay Mode

■

A -> B Seq (Delay)

■

Counter Measurements

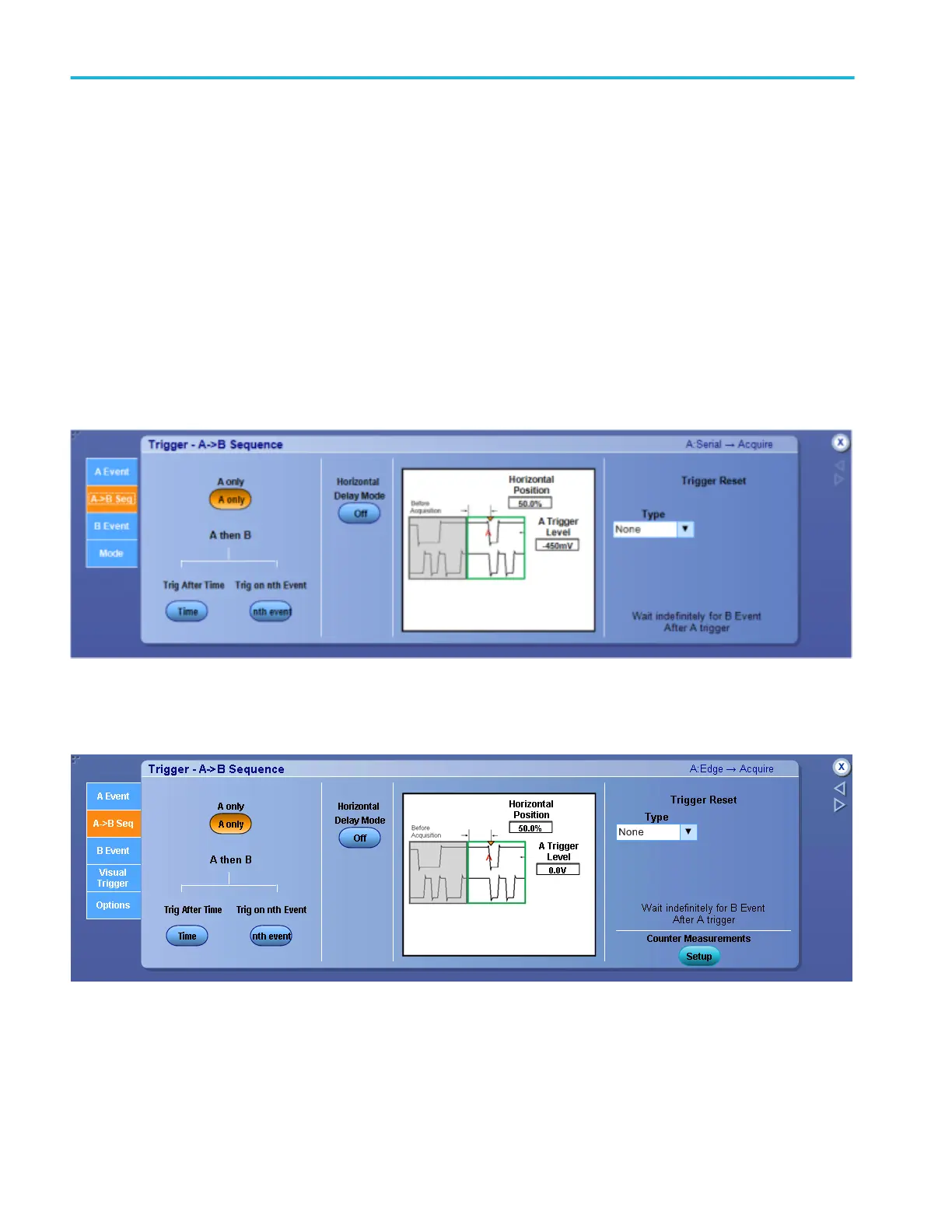

The following screen appears on DPO70000SX Series instruments:

The following screen appears on MSO/DPO5000B Series instruments:

Trigger setups
