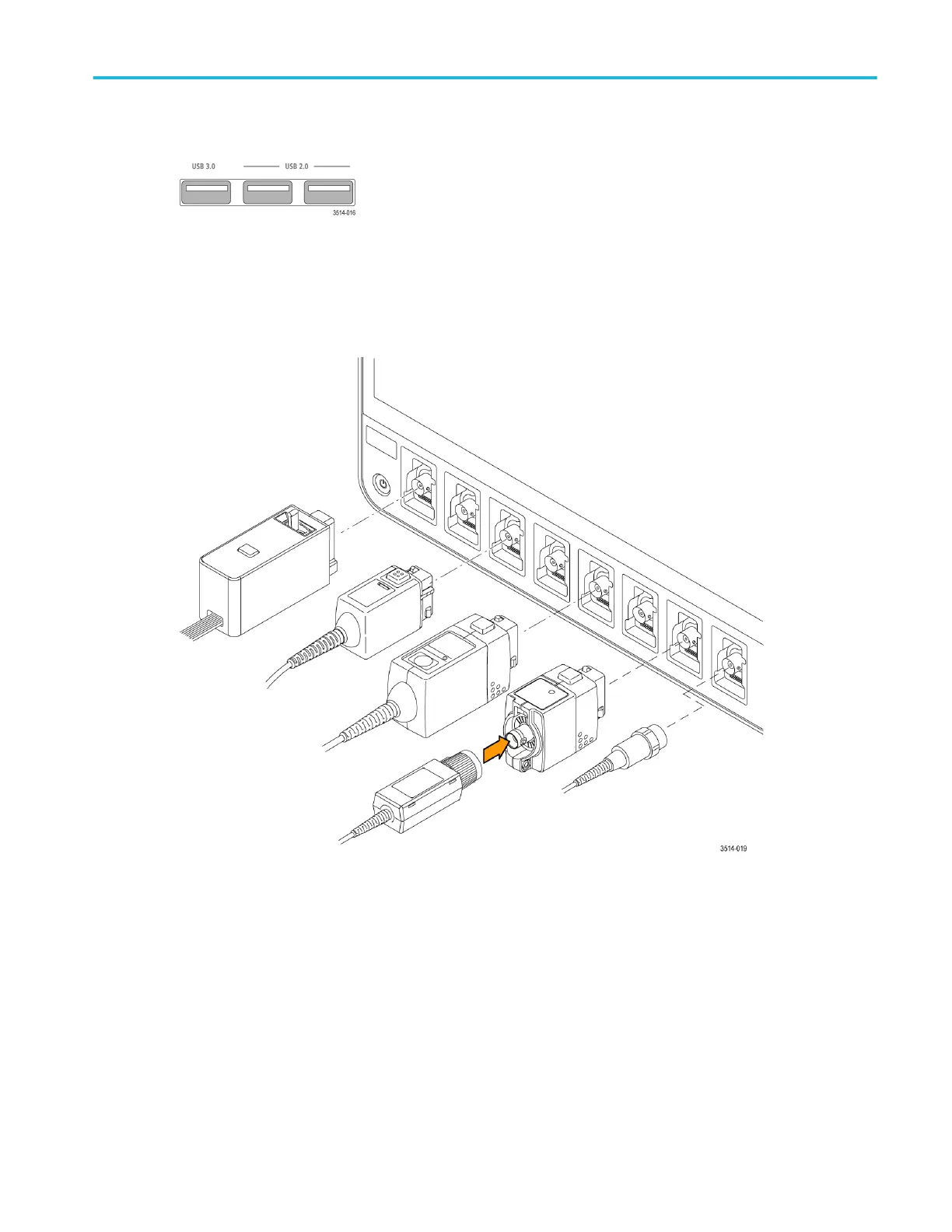

8. USB Host ports (USB 3.0 and 2.0):
■
USB ports are located at the lower right corner of the front panel, and on the rear panel. Connect USB flash drives to
which you can save or recall data (such as instrument software updates, waveforms, settings, and screen captures), or
connect peripheral devices such as a mouse or keyboard.
9. FlexChannel probe connectors:
■
FlexChannel connectors support all TekVPI+ and TekVPI measurement probes, BNC passive probes, the TPL058
FlexChannel Logic Probe, and BNC cables. You connect most probes simply by pushing them into the connector until
the probe seats with a click. See Connecting Probes on page 5.
Getting acquainted with your instrument
MSO54, MSO56, MSO58 Installation and Safety Manual 13
