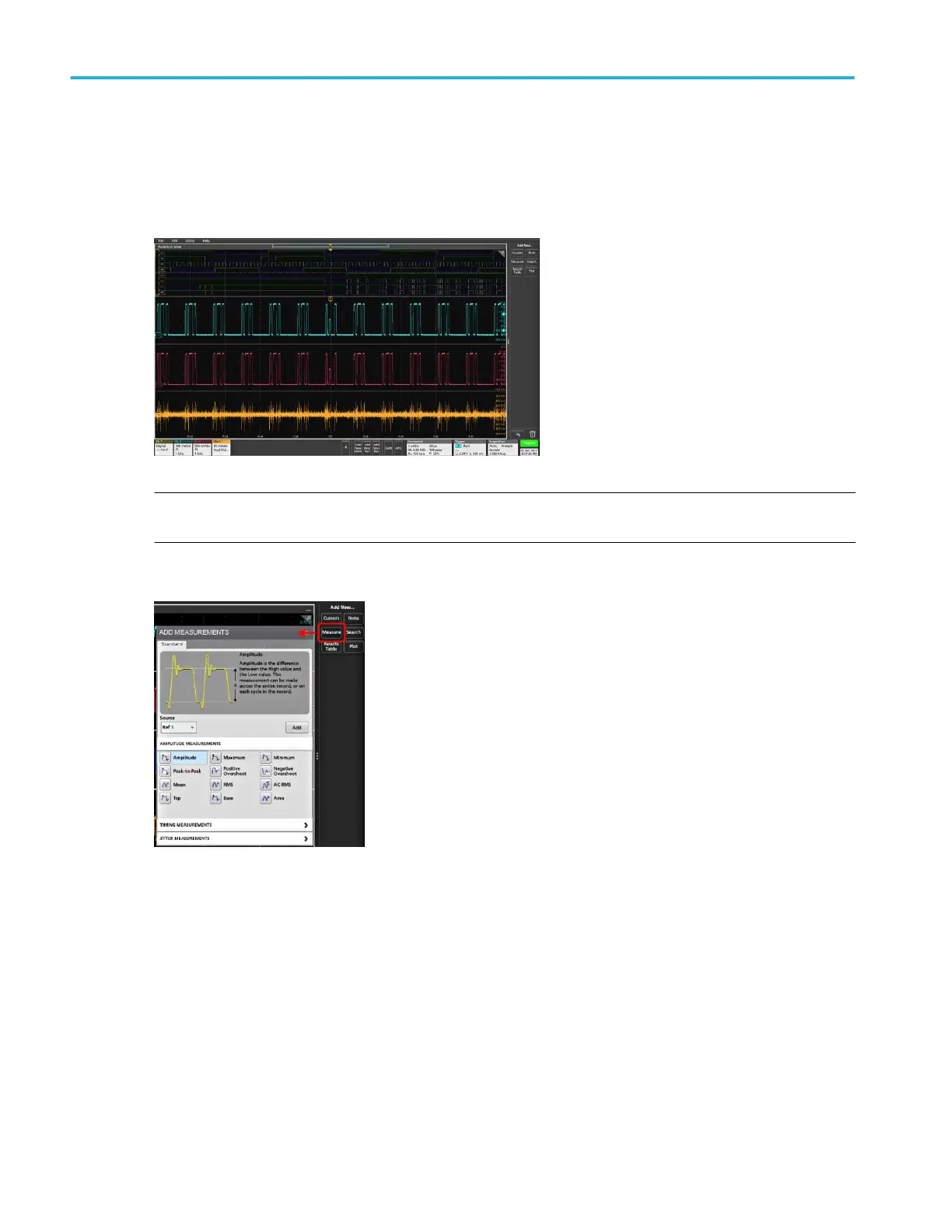

Add a measurement
Use this procedure to select and add measurements.
1. Acquire the channel(s) and/or waveform(s) on which you want to take measurements.
NOTE. Waveforms do not need to be displayed to be used for measurements, as long as the channel or waveform badge is
on the Settings bar and is acquiring the signal to measure.
2. Tap the Add New...Measure button to open the Add Measurements configuration menu.
3. Tap the Source field and select the measurement source. All available sources that are valid for the measurement are
listed.
Operating basics
40 MSO54, MSO56, MSO58 Installation and Safety Manual
