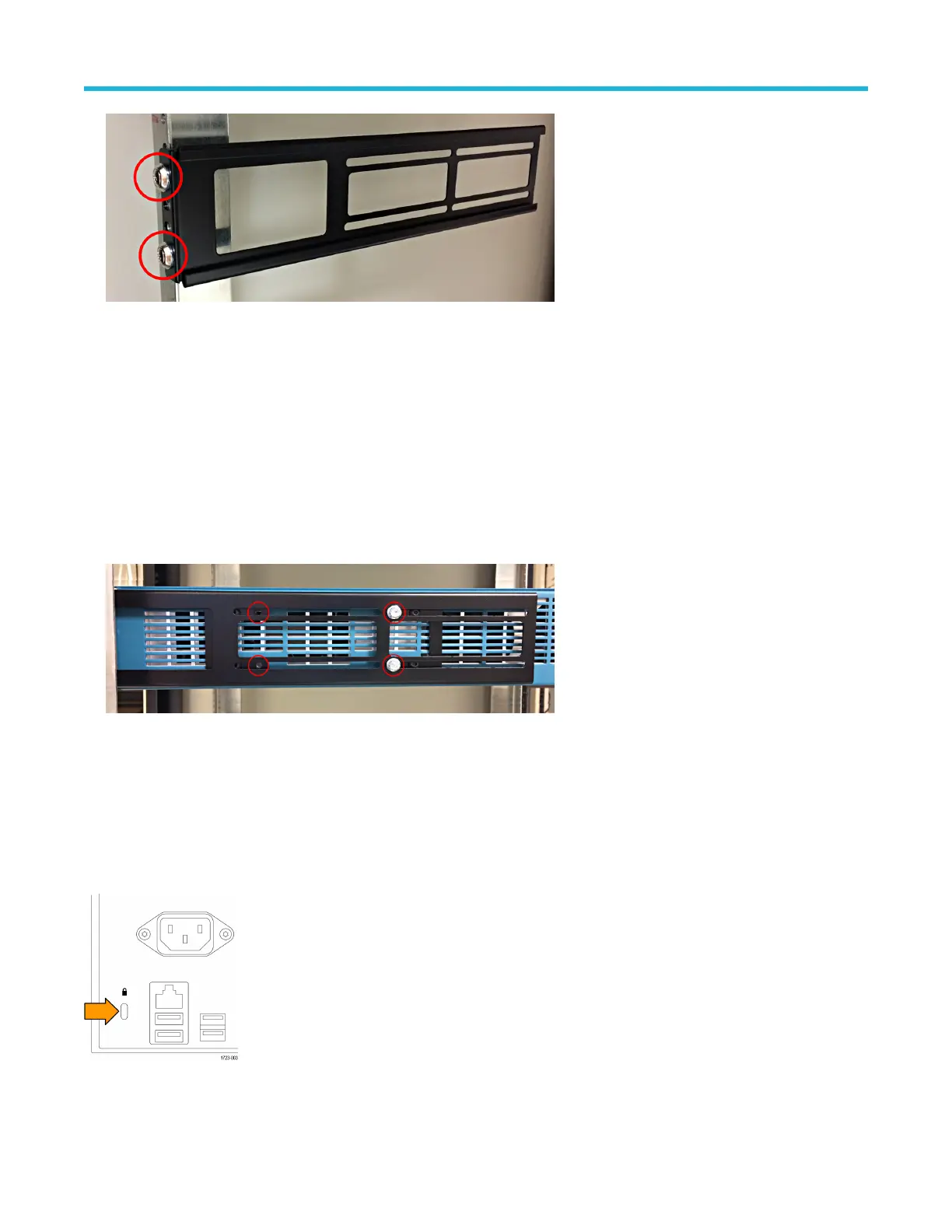

2. Using two people to support the instrument, insert the instrument from the front of the rack so that the chassis rack bracket inserts into
the rear rack bracket.
3. Continue pushing from the front until the instrument is flush with the front of the rack.
4. Use four bolts and washers from the supplied hardware to attach the front of the instrument to the rack. Tighten by hand to support the
instrument.
5. From the rear of the rack, slide the second rear rack bracket onto the instrument chassis rack bracket until the rear rack bracket is flush
with the rear rack.
6. Use two bolts and washers from the supplied hardware to attach the second rear rack bracket to the rear of the rack. Tighten by hand.
7. Tighten all bolts to 1.1 N·m.
8. Using a 5/16 inch wrench, attach two supplied hexhead bolts to the rack bracket assembly on each side, to lock the brackets in place
and prevent the instrument from unintentional removal when the front rack screws are removed (see the following image). There are
four bolt positions available on each side (see image). Tighten the bracket lock bolts to 0.7 N·m.
9. Attach power cord and cables to rear chassis as needed.
End of rack mount instructions.
Secure (lock) the instrument
Lock an instrument to a test bench or equipment rack to prevent property loss.
To secure the instrument to a workbench, rack, or other location, attach a standard laptop security lock to the rear panel of the instrument.
