Page #18 background imageLoading...
Page #18 background image

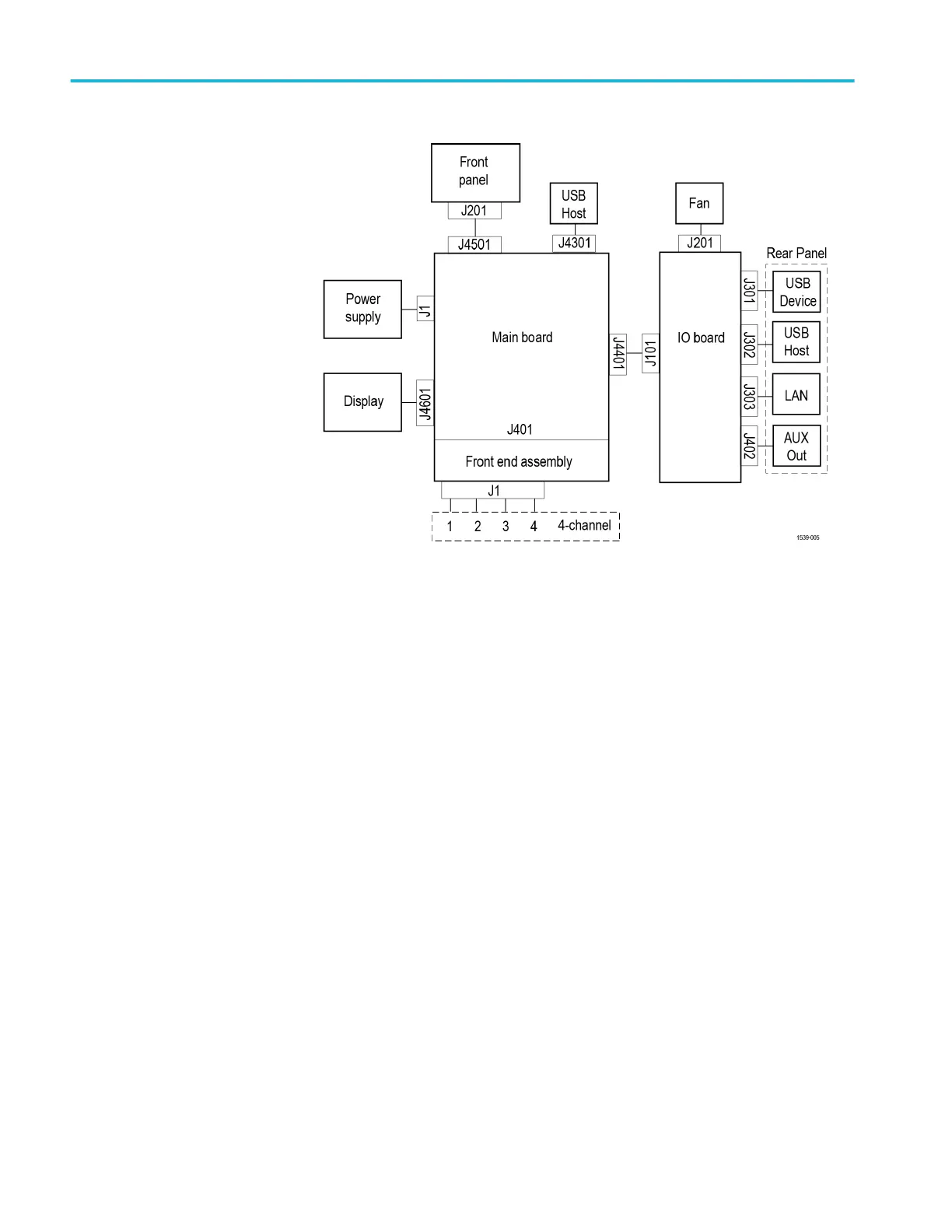

Figure 2: TBS2000B block diagram (4 channel)
Power supply
The Power Supply board converts AC line voltage to +12 V to power for all
internal circuits.
Theory of operation
4 TBS2000B Series Service Manual
