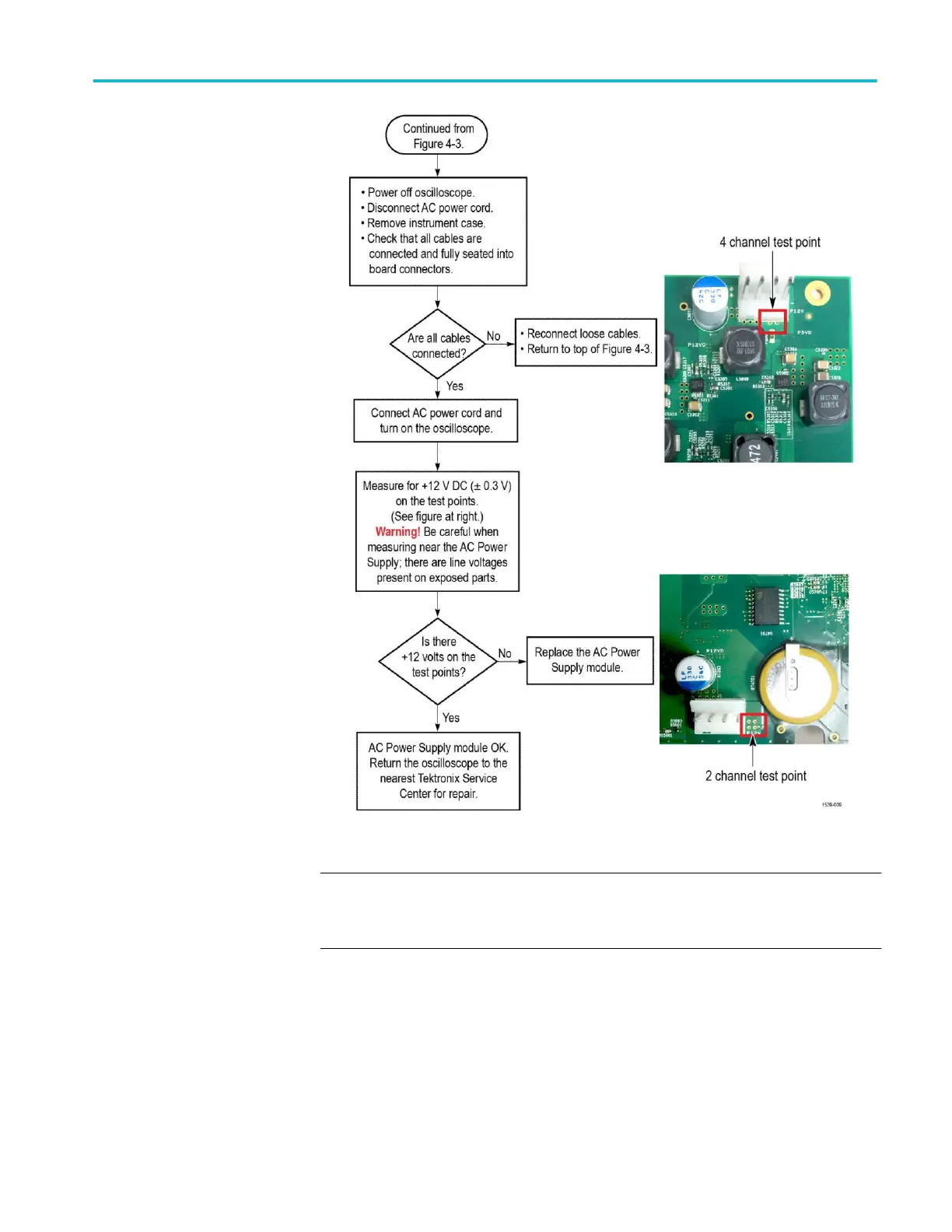

AC Power Supply module

troubleshooting flowchart

Figure 4: AC Power Supply module troubleshooting

NOTE. Images show the power supply cable disconnected from the main board, to

better show the test point locations. The power cable from the Power Supply must

be connected to the Main board to test the +12 VDC value.

Maintenance

TBS2000B Series Service Manual 17
