Tektronix TDS 200-Series Service Manual

Maintenance
6–18
TDS 200 Series Digital Oscilloscope Service Manual
You will need a torque-limiting Torx T-15 screwdriver and a flat-blade
screwdriver for this procedure.
Removal. First remove the handle, power button, and rear case using the
procedures on pages 6–12, 6–13, and 6–14. Then, use the following procedure to
remove the flip stand.
1. Place the rear case face down on a soft surface (such as an anti-static mat).
2. With the stand folded against the rear case (in the up position), push the stand
out of the rear case channels as shown in Figure 6–10.
Rear case
Flip stand

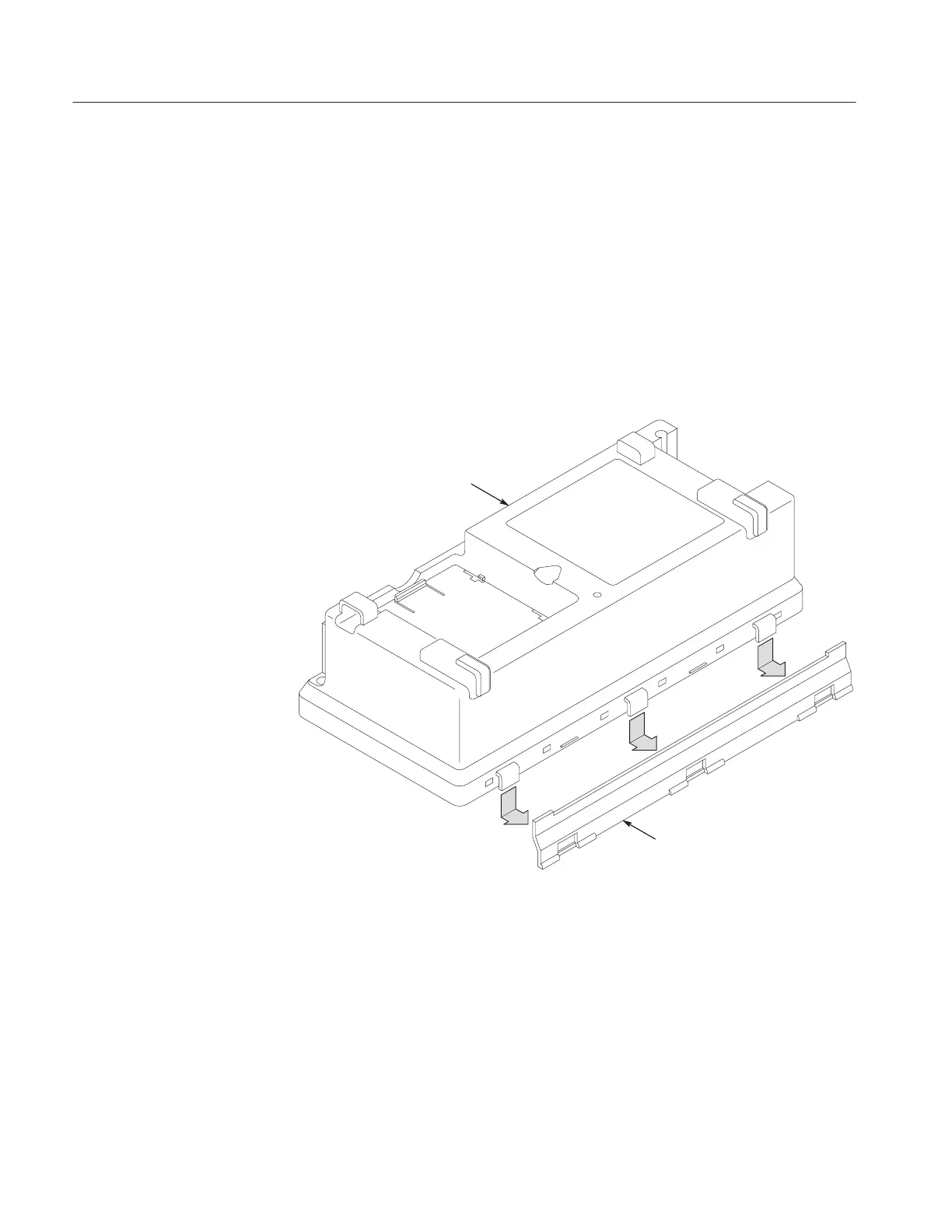

Figure 6–10: Removing the flip stand
Flip Stand
