Maintenance
TDS 200 Series Digital Oscilloscope Service Manual
6–25
Installation. Use this procedure to install the internal assembly.
1. Place the internal assembly into the front case as shown in Figure 6–15.
2. If used, place the copper mesh grounding tube between the main board
module shield and the front case as shown in Figure 6–16. This part is not
used on later instruments; check the Mechanical Parts List for your serial
number (see page 10–8).
3. Use the installation procedures for each module removed to reassemble the
instrument.

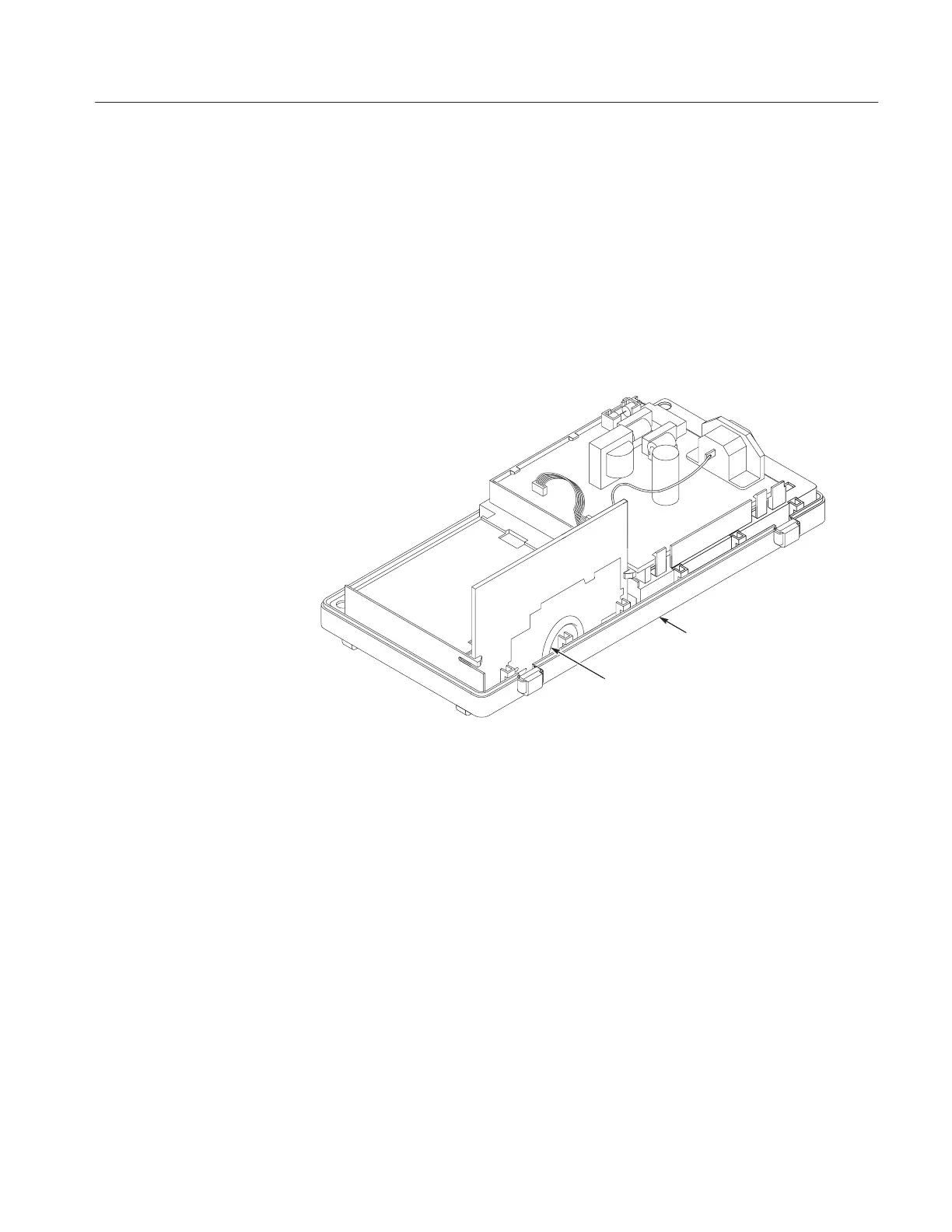

Front case
Copper
mesh tubing
Figure 6–16: Installing the copper mesh grounding tube
