Do the following steps to reset the digitizing oscilloscope to a known factory
default state. (Reset the oscilloscope anytime you begin a new task and need to
“start fresh” with known default settings.)
1. Press the save/recall SETUP button to display the Setup menu (see
Figure 2–2).

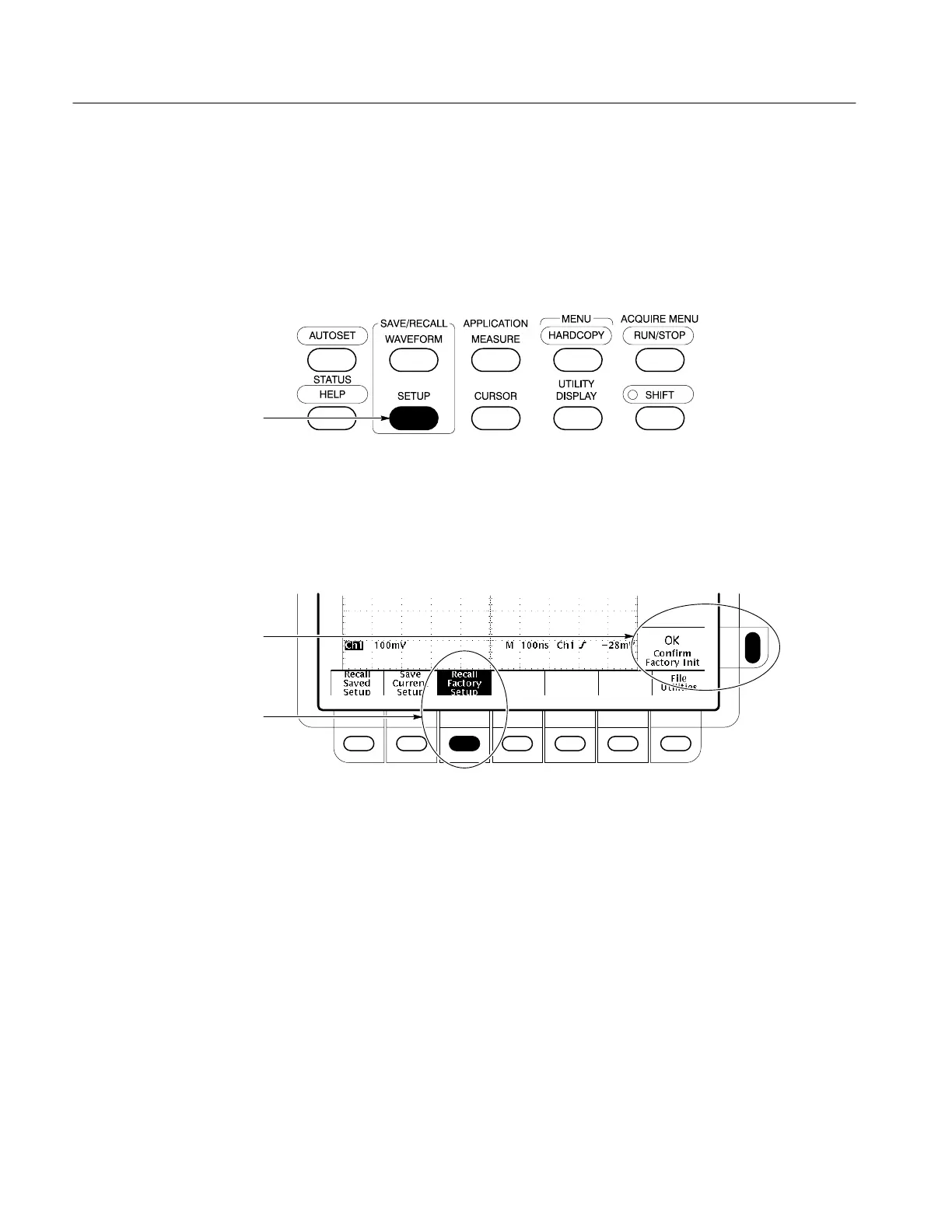

SETUP Button
Figure 2–2: SETUP Button Location
The digitizing oscilloscope displays main menus along the bottom of the
screen. Figure 2–3 shows the Setup main menu.
Recall Factory Setup
Menu Item and Button
OK Confirm Factory Init
Menu Item and Button
Figure 2–3: The Displayed Setup Menu
2. Press the button directly below the Recall Factory Setup menu item.
The display shows side menus along the right side of the screen. The buttons
to select these side menu items are to the right of the side menu.
Because an accidental instrument reset could destroy a setup that took a long
time to create, the digitizing oscilloscope asks you to verify the Recall
Factory Setup selection (see Figure 2–3).
3. Press the button to the right of the OK Confirm Factory Init side menu
item.
Reset the Oscilloscope
To Next Page
