Tutorial
TDS 420A, TDS 430A, TDS 460A & TDS 510A User Manual
2–27

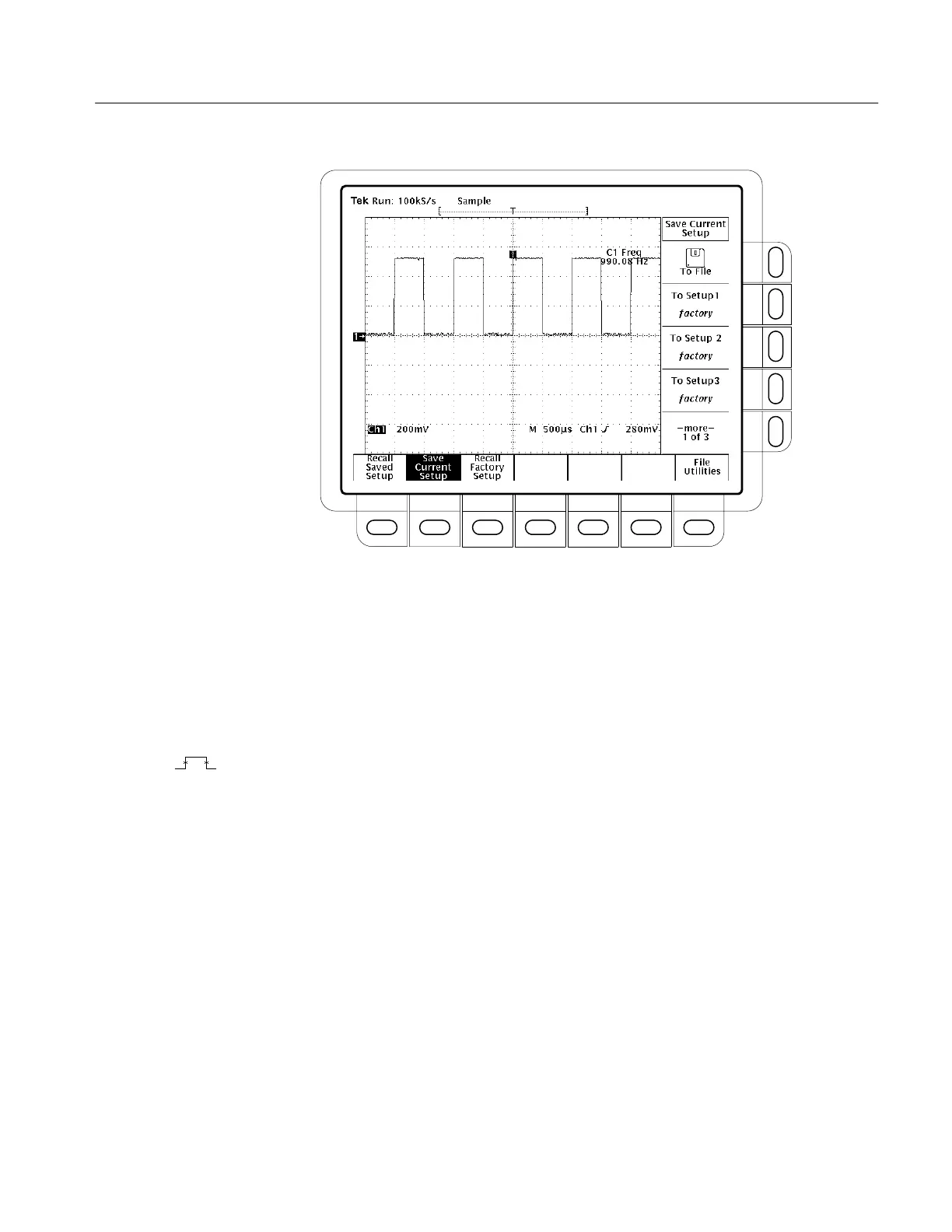

Figure 2–18: Save/Recall Setup Menu
7. Press one of the To Setup side menu buttons to store the current instrument
settings into that setup location. Remember which setup location you
selected for use later.
Once you have saved a particular setup, you can change the settings as you wish,
knowing that you can come back to that setup at any time.
8. Press MEASURE Positive Width (side) to add that measurement to the
display.
To recall the setup, press SETUP
Recall Saved Setup (main) Recall
Setup
(side) for the setup location you used in the last exercise.
Recall a Setup
