Tutorial
TDS 420A, TDS 430A, TDS 460A & TDS 510A User Manual
2–25
There are several important things to observe on the screen:
The knob icon appears at the top of the screen. The knob icon indicates that
the general purpose knob is set to adjust a parameter.
The upper right corner of the screen shows the readout High Ref: 90%.
The High Ref side menu item is highlighted, and a box appears around the
90% readout in the High Ref menu item. The box indicates that the general
purpose knob is currently set to adjust that parameter.
To adjust the high level to 80%, turn the general purpose knob.
You can pop up a display of almost all of the automated measurements. To
display a snapshot of automated measurements of the selected channel, do the
following steps:
1. Press Snapshot (main) to pop up a snapshot of all available single
waveform measurements. (See Figure 2–17).

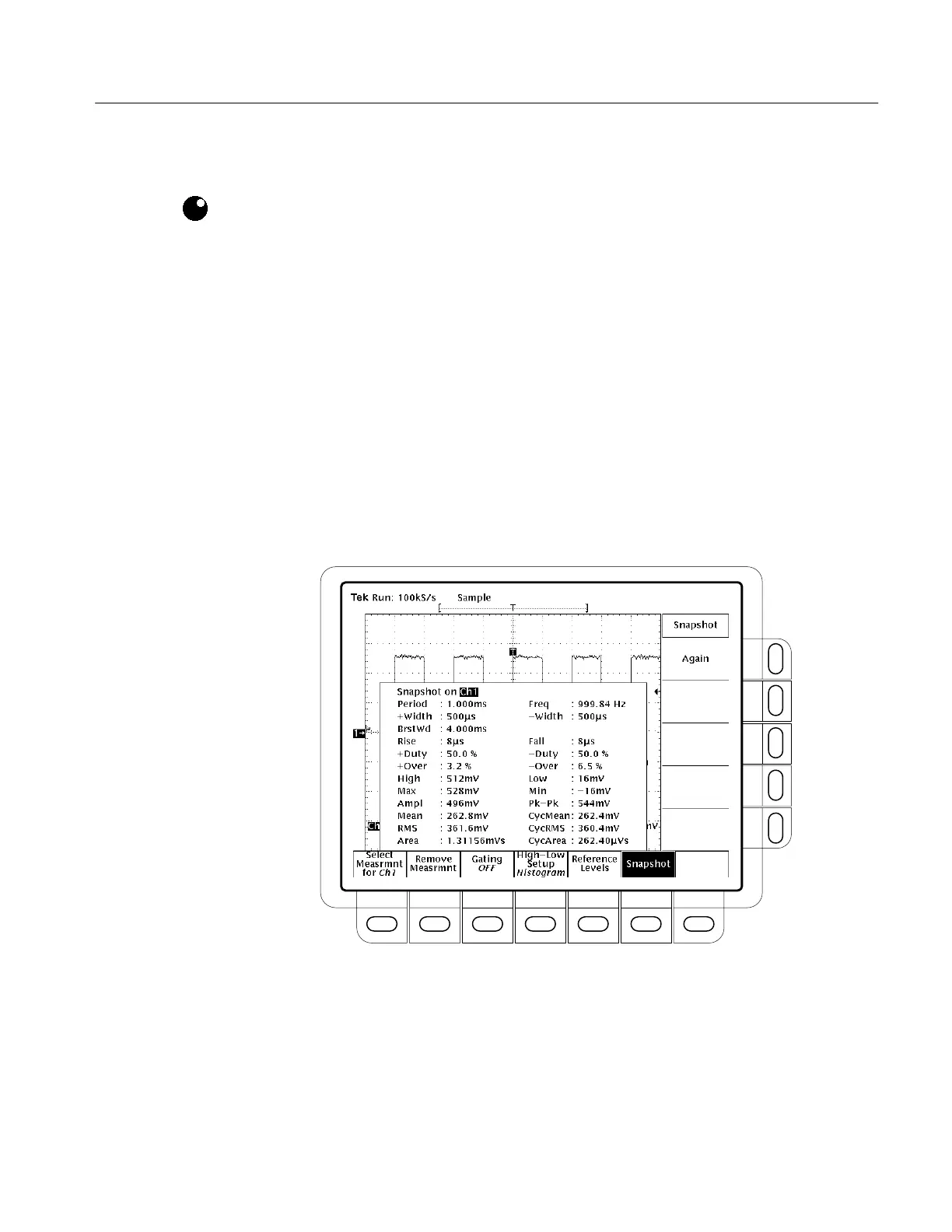

Figure 2–17: Snapshot of Channel 1
Display a Snapshot of
Automated Measurements
