Tutorial
2–20
TDS 420A, TDS 430A, TDS 460A & TDS 510A User Manual
Side Menu Title
Ch2 Reference Indicator

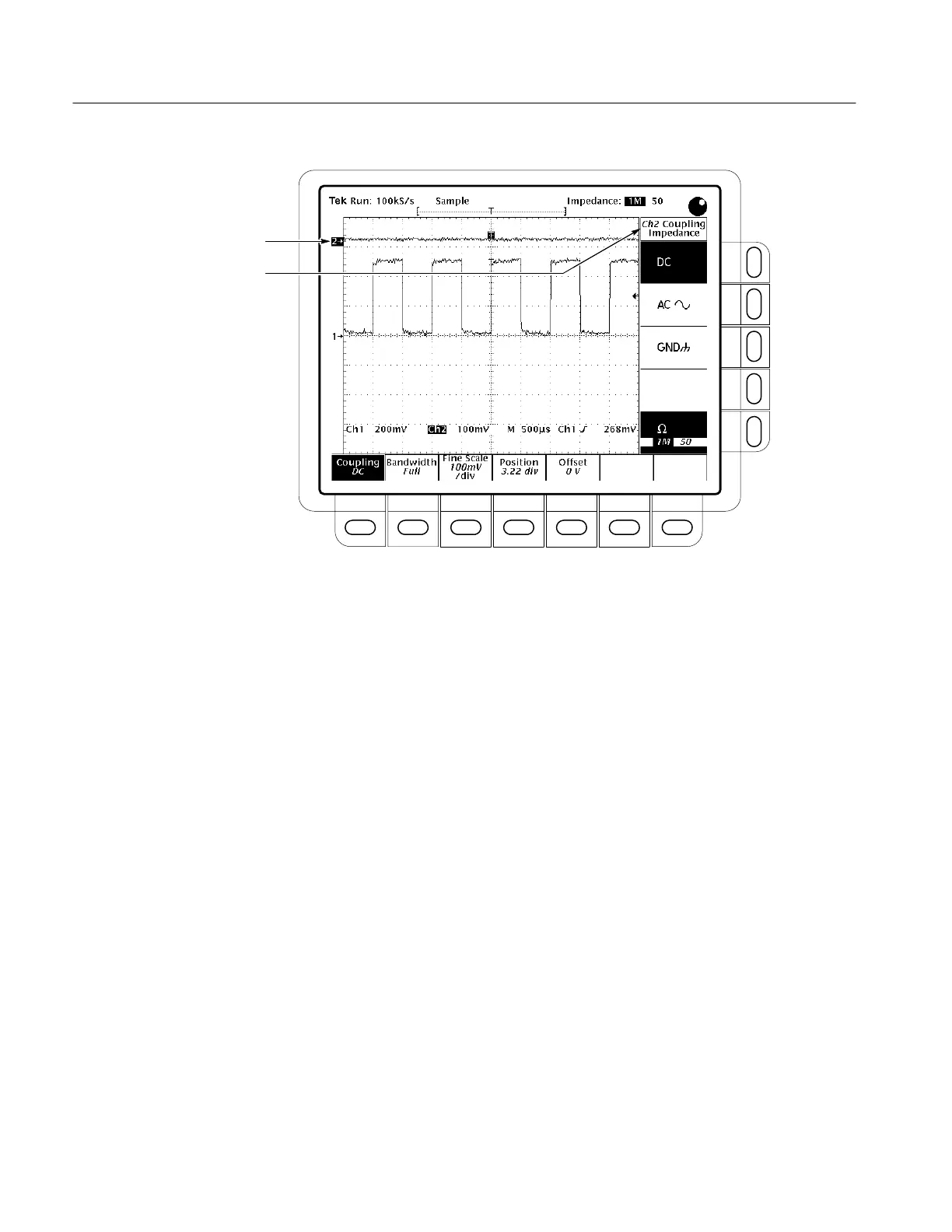

Figure 2–12: The Vertical Main Menu and Coupling Side Menu
Pressing a channel (CH) button sets the vertical controls to that channel. It also
adds the channel to the display if that waveform is not already displayed. To
explore assigning controls to different channels, do the following steps:
1. Press CH 1.
Observe that the side menu title shows Ch1 (see Figure 2–13) and that the
indicator next to CH 1 is on. Note the highlighted menu item in the side
menu also changes from the 50 W channel 2 setting to the 1 MW impedance
setting of channel 1.
2. Press CH 2
➞ (side) to toggle the selection to 1M. This returns the
coupling impedance of channel 2 to its initial state.
Assign Controls to
Another Channel
