Edge Triggering
3–26
TDS 420A, TDS 430A, TDS 460A & TDS 510A User Manual
Trigger Status Lights

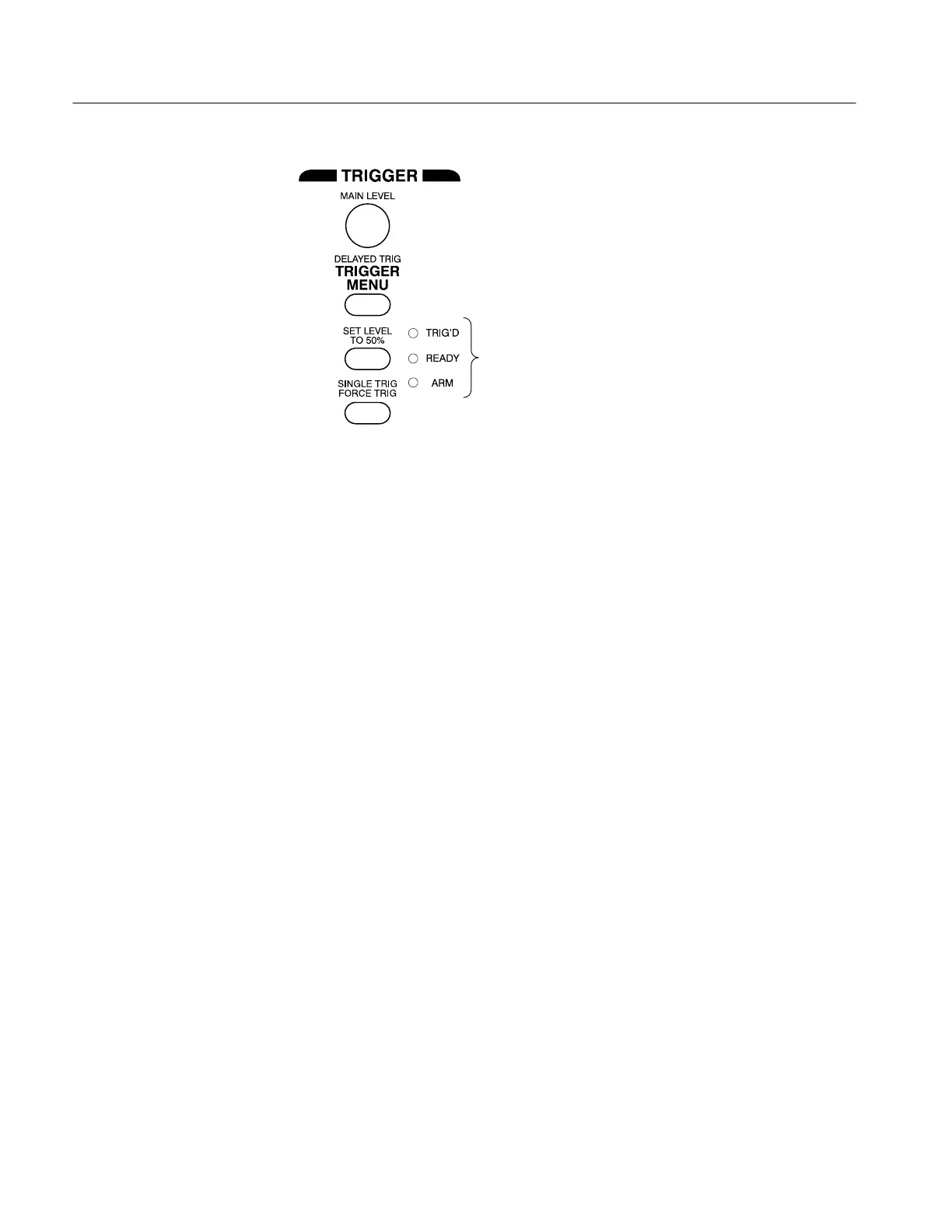

Figure 3–14: TRIGGER Controls and Status Lights
To Single Trigger. To trigger on the next valid trigger event and then stop, press
SHIFT FORCE TRIG. Now press the RUN/STOP button each time you want
to initiate a single sequence of acquisitions.
