Getting Started
TDS Family Oscilloscope Programmer Manual
1–5
GPIB Device
GPIB Device
GPIB Device
GPIB Device
GPIB Device
GPIB Device
GPIB Device

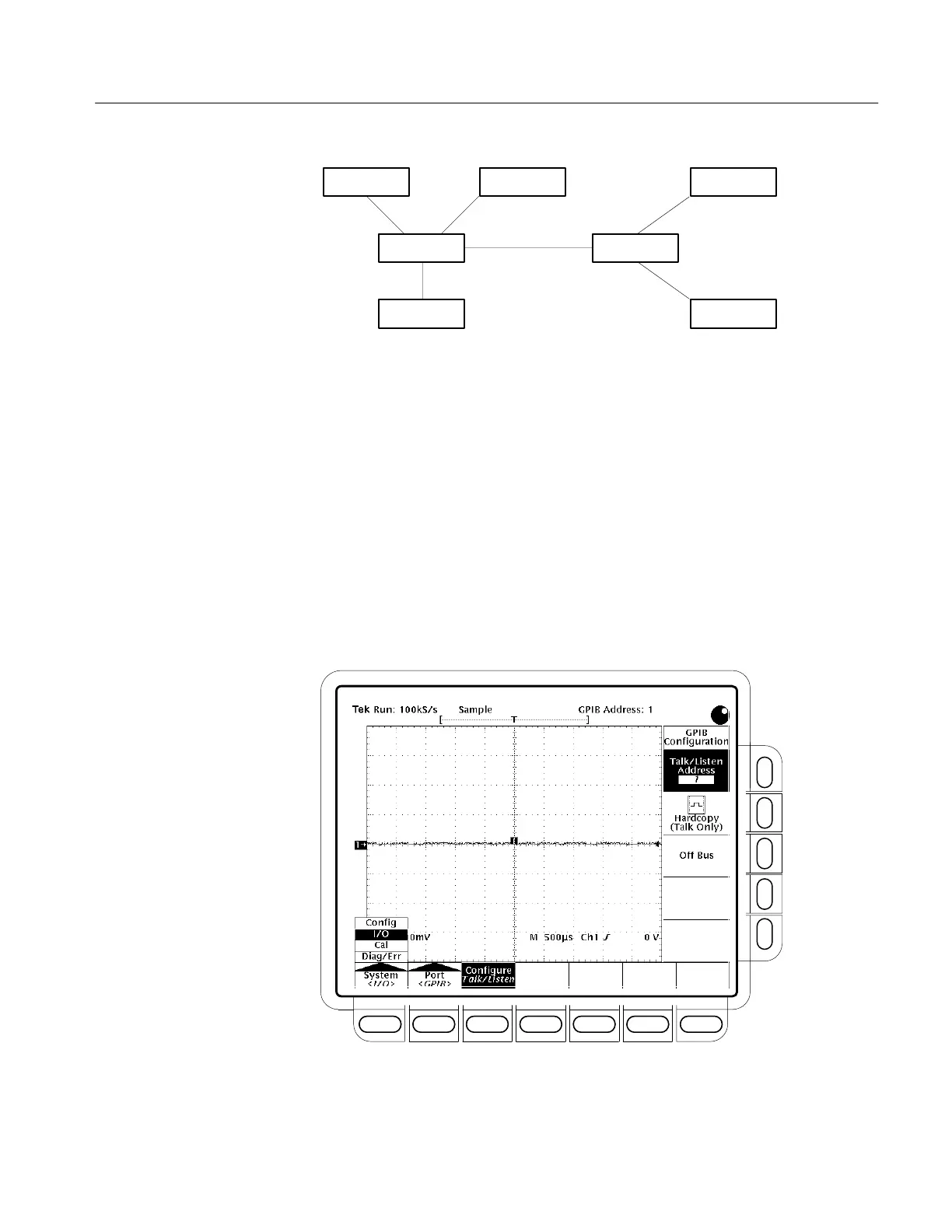

Figure 1–7: Typical GPIB Network Configurations
Appendix C: Interface Specifications gives more information on the GPIB
configuration of the digitizing oscilloscope.
You need to set the GPIB parameters of the digitizing oscilloscope to match the
configuration of the bus. Once you have set these parameters, you can control the
digitizing oscilloscope through the GPIB interface.
1. Press the UTILITY (SHIFT DISPLAY) button to display the Utility menu.
2. Press the System button in the main menu until it highlights the I/O
selection in the pop-up menu. See Figure 1–8.
Figure 1–8: Selecting the I/O System in the Main Menu
Setting the GPIB
Parameters
