Command Descriptions
2–204
TDS Family Oscilloscope Programmer Manual
FDDI means delete any user defined masks and then create masks 1 .. 2 as
implied by the FDDI standard (125 Mb/s).
NONe causes all masks to be deleted. This even includes user masks.
USERMask is a no-op when received by the SET form of this command. It is
allowed because a SET? can get it.
MASK:STANDARD OC3
selects the OC3 standard.
MASK:TBPosition
TDS 500C & 700C Only
Set the time base position. Use this command to reposition the waveform against
the mask.
Mask

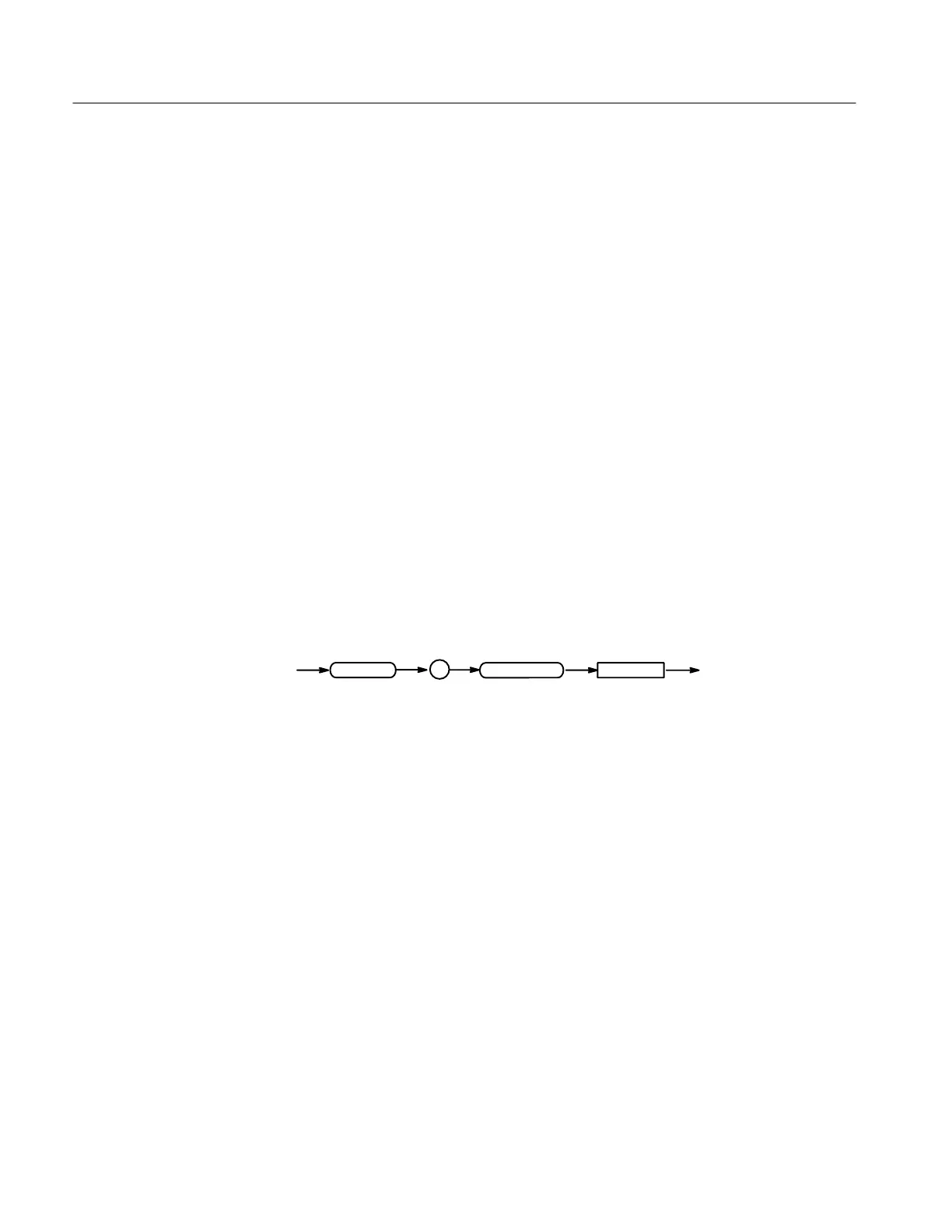

MASK:TBPosition <NR3>
<NR3>
MASK
:
TBPosition
<NR3> is the time base position. Increasing the value moves the trigger position
and waveform left on the screen. Decreasing it moves the trigger position and
waveform right. Units of measure is seconds. Minimum resolution is 1 ps. The
oscilloscope will round any number entered to the nearest 1 ps.
MASK:TBPOSITION 1.44e-9
moves the waveform appropriately.
MATH<x>? (Query Only)
Returns the definition for the math waveform specified by <x>.
Vertical
MATH<x>?
Examples
Group
Syntax
Arguments
Examples
Group
Syntax
