Command Descriptions
2–222
TDS Family Oscilloscope Programmer Manual

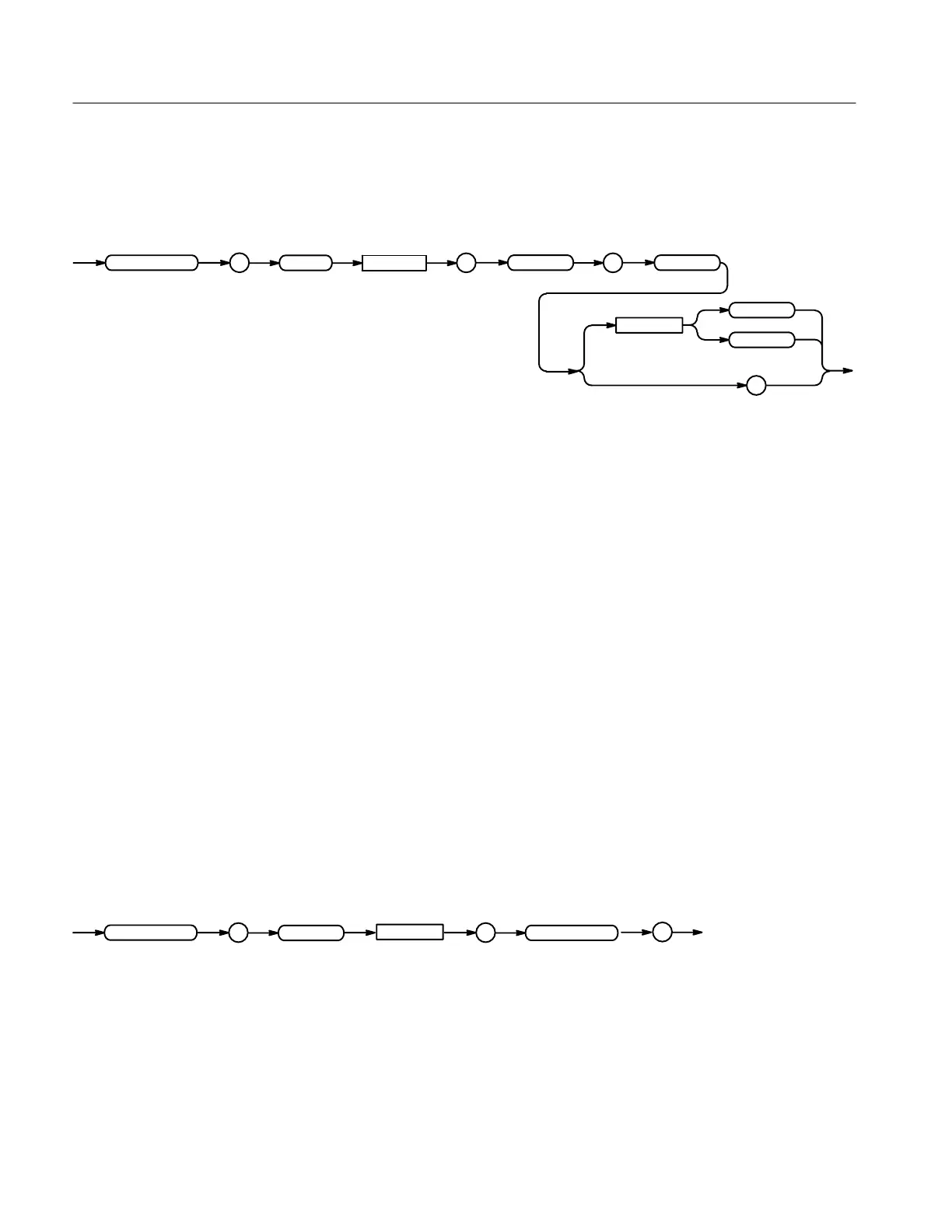

MEASUrement:MEAS<x>:DELay:EDGE2 { FALL | RISe }
MEASUrement:MEAS<x>:DELay:EDGE2?
MEAS
:
:
MEASUrement
DELay
:
EDGE2
<x>
<Space>
?
FALL
RISe
FALL specifies the falling edge.
RISe specifies the rising edge.
MEASUREMENT:MEAS2:DELAY:EDGE2 RISE
specifies that the rising edge be used for the second delay measurement.
MEASUREMENT:MEAS2:DELAY:EDGE2?
might return FALL showing that the falling or negative edge of the waveform is
used for the second measurement.
MEASUrement:MEAS<x>:MAXimum? (Query Only)
TDS 500C & 700C Only
Returns the maximum value found for this measurement since the last statistical
reset.
Measurement
MEASUrement:MEAS<x>:MAXimum?
:MEASUrement
MEAS
<x> ?
:
MAXimum
<NR3>
MEASUREMENT:MEAS3:MAXIMUM?
might return: :MEASU:MEAS3:MAX 4.18E-9
Syntax
Arguments
Examples
Group
Syntax
Returns
Examples
