Tektronix TDS 420A Programmer's Manual

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–227
MAXimum | MEAN | MEANDBM (TDS 500C and 700C) | MEDian (TDS 500C
and 700C) | MINImum | NDUty | NOVershoot | NWIdth | PDUty |
PEAKHits (TDS 500C and 700C) | PERIod |PHAse | PK2pk | POVershoot
| PWIdth | RISe | RMS | SIGMA[1-3] (TDS 500C and 700C) | STDdev
(TDS 500C and 700C) | WAVEFORMS (TDS 500C and 700C) }

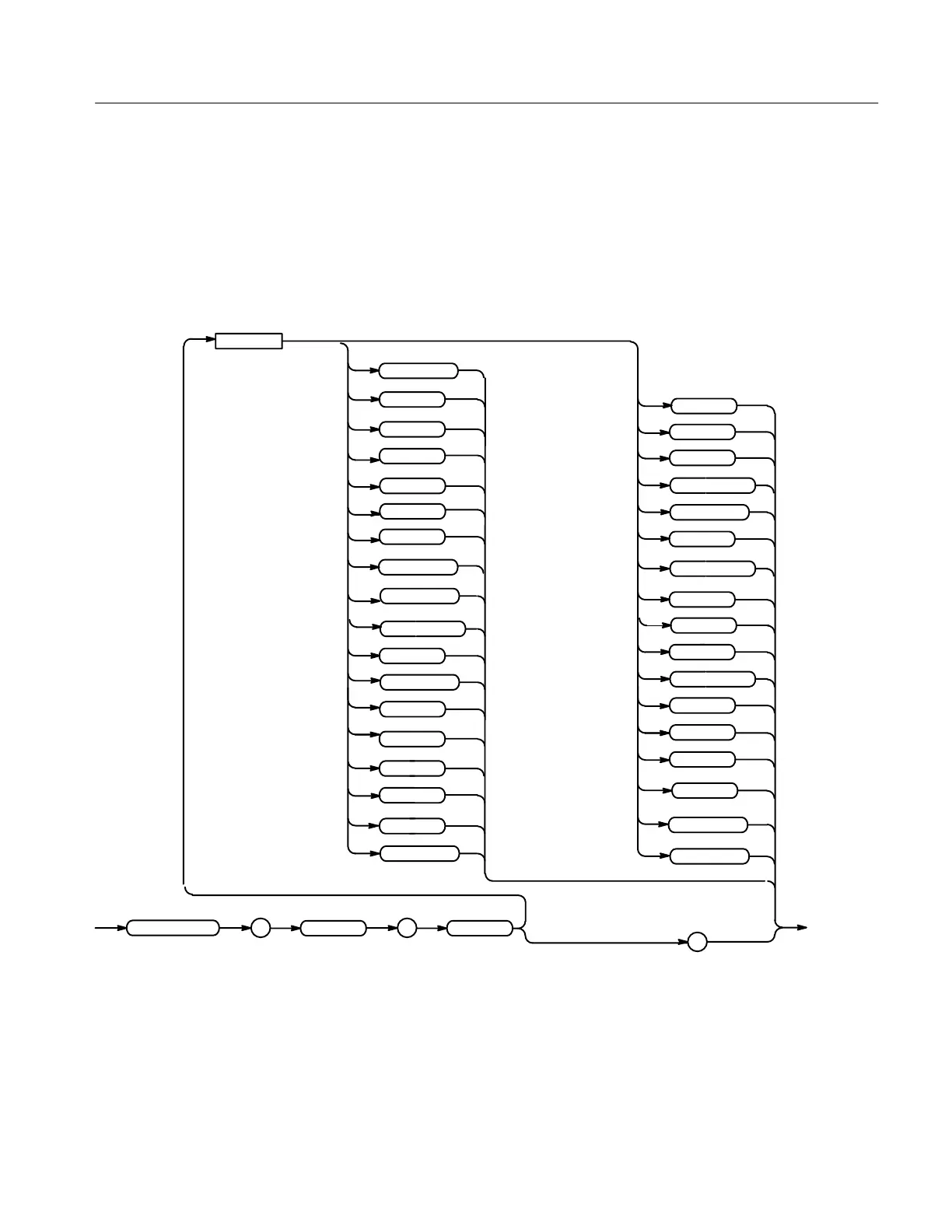

MEASUrement:MEAS<x>:TYPe?
:MEASUrement
MEAS
:
TYPe
<Space>
POVershoot
?
HIGH
FALL
MINImum
LOW
CRMs
AMPlitude
FREQuency
AREa
DELay
PDUty
MAXimum
NDUty
NWIdth
NOVershoot
PWIdth
RMS
PERIod
PK2pk
RISe
MEAN
BURst
CARea
PHAse
CMEan
WAVEFORMS
MEDian
STDdev
SIGMA[1-3]
PEAKHits
EXTINCTPCT
EXTINCTDB
MEANDBM
EXTINCTRATIO
HITs
For more information on how measurements are derived, see Appendix B:
Algorithms, in the related TDS Family User Manual.
AMPlitude is the high value minus the low value or HIGH – LOW.
AREa is the area between the curve and ground over the entire waveform.
