Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–49
When extended-acquisition-length mode is on, this command can still set and
return values. However, the oscilloscope will treat all modes, except Peak Detect,
as the Sample mode.
Acquisition
ACQuire:NUMAVg, ACQuire:NUMENv, CURVe?, DATa:WIDth
For the TDS 400A, 510A, 500C & 700C:

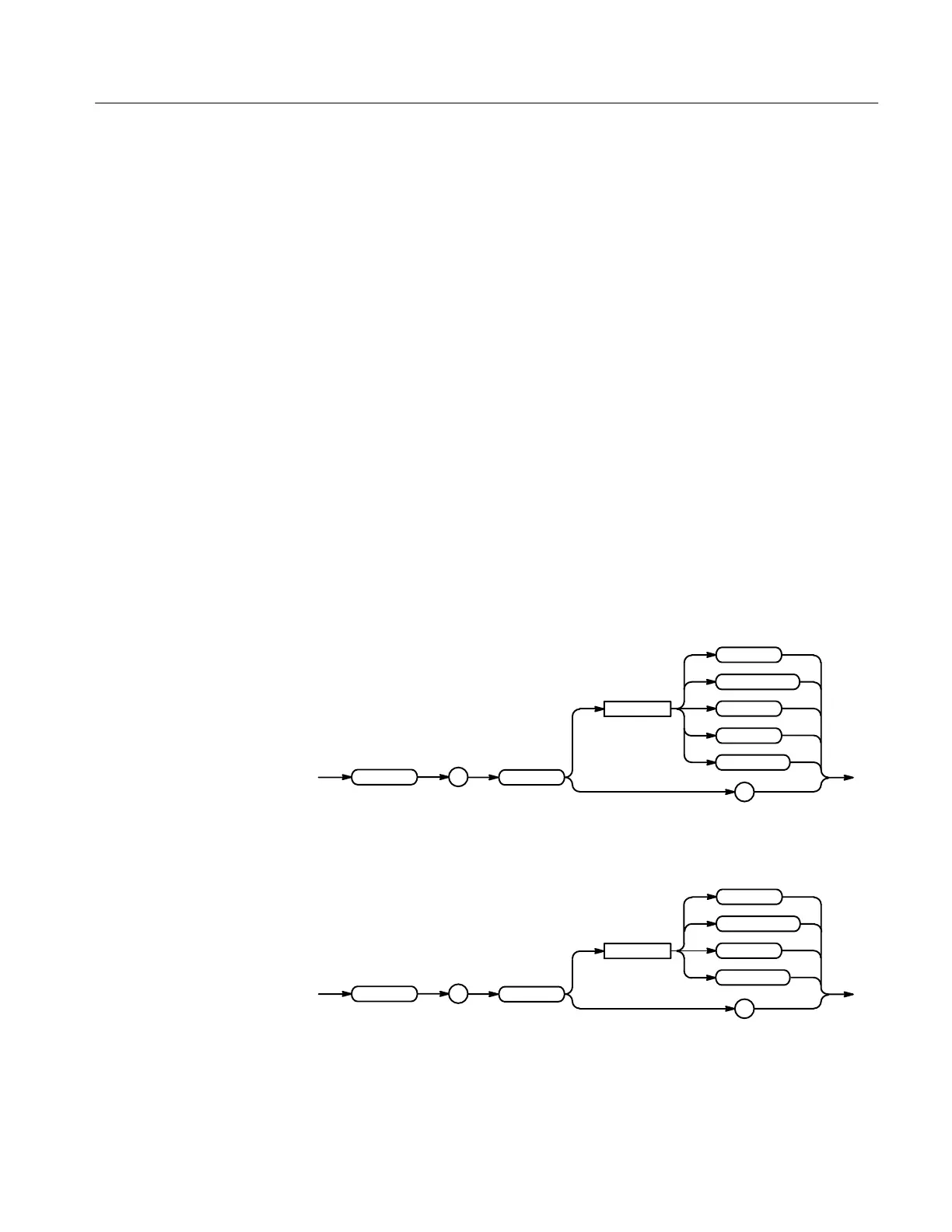

ACQuire:MODe { SAMple | PEAKdetect | HIRes | AVErage |
ENVelope }
For the TDS 600B:
ACQuire:MODe { SAMple | PEAKdetect | AVErage | ENVelope }
For all TDS:
ACQuire:MODe?
For the TDS 400A, 510A, 500C, & 700C:
ENVelope
HIRes
ACQuire
:
MODe
<Space>
AVErage
PEAKdetect
SAMple
?
For the TDS 600B:
ENVelope
AVErage
ACQuire
:
MODe
<Space>
?
PEAKdetect
SAMple
SAMple specifies that the displayed data point value is simply the first sampled
value that was taken during the acquisition interval. In sample mode, all
waveform data has 8 bits of precision. You can request 16 bit data with a
Group
Related Commands
Syntax
Arguments
