Tektronix TDS1002 User Manual

Reference
TDS1000/2000-Series Digital Oscilloscope User Manual
81

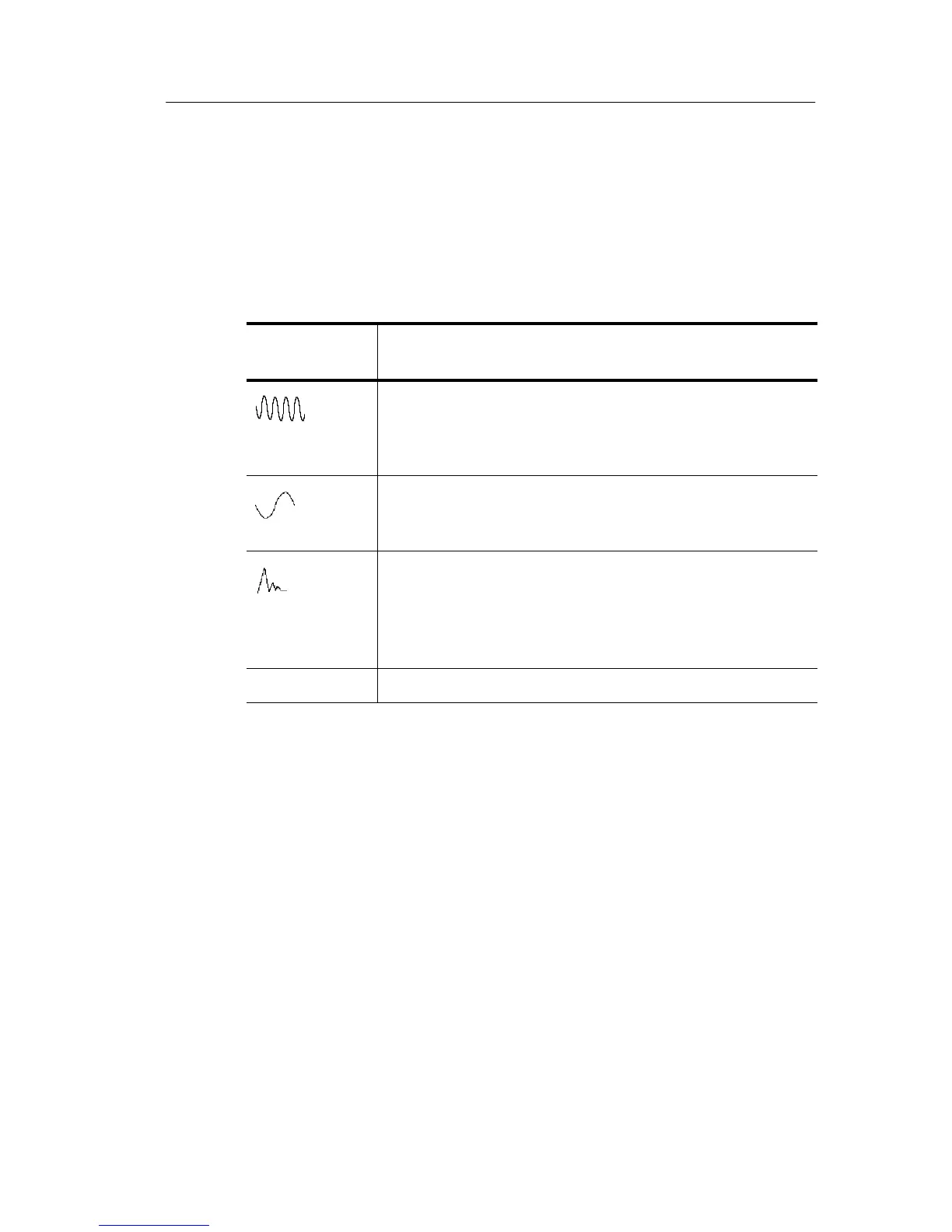

Sine Wave
When you use the Autoset function and the oscilloscope determines
that the signal is similar to a sine wave, the oscilloscope displays the
following options:
Sine wave
options
Details
Multi-cycle sine
Displays several cycles with appropriate vertical and
horizontal scaling; the oscilloscope displays Cycle RMS,
Frequency, Period, and Peak-to-Peak automatic measure-
ments
Single-cycle sine
Sets the horizontal scale to display about one cycle of the
waveform; the oscilloscope displays Mean, and Peak-to-
Peak automatic measurements
FFT
Converts the input time-domain signal into its frequency
components and displays the result as a graph of frequency
versus magnitude (spectrum); since this is a mathematical
calculation, refer to the Math FFT chapter on page 115 for
more information
Undo Setup Causes the oscilloscope to recall the previous setup

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
