Tektronix TDS1002 User Manual

Reference
82
TDS1000/2000-Series Digital Oscilloscope User Manual

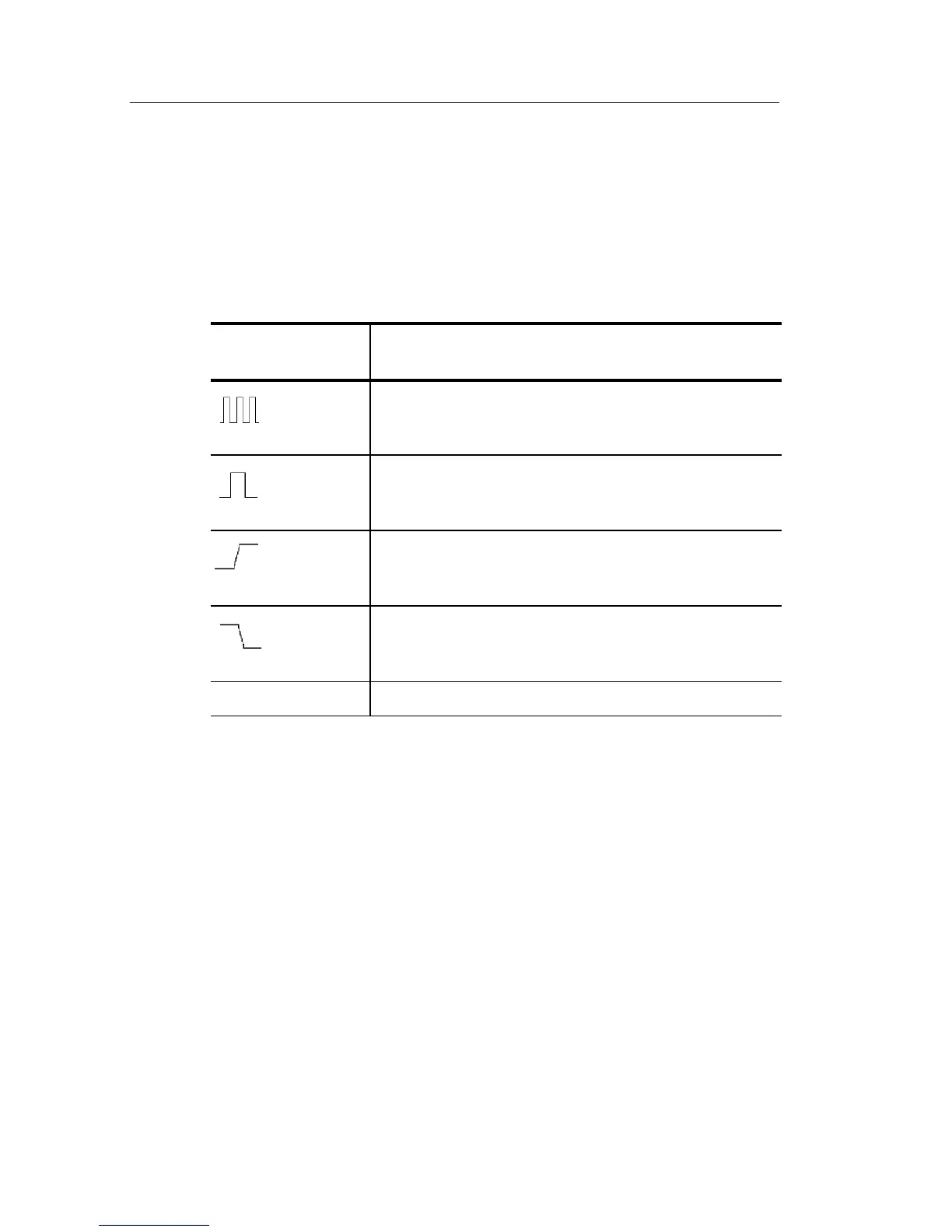

Square Wave or Pulse
When you use the Autoset function and the oscilloscope determines
that the signal is similar to a square wave or pulse, the oscilloscope
displays the following options:
Square wave or
pulse options
Details
Multi-cycle square
Displays several cycles with appropriate vertical and
horizontal scaling; the oscilloscope displays Pk-Pk,
Mean, Period, and Frequency automatic measurements
Single-cycle square
Sets the horizontal scale to display about one cycle of
the waveform; the oscilloscope displays Min, Max, Mean,
and Positive Width automatic measurements
Rising edge
Displays the edge, and the Rise Time and Peak-to-Peak
automatic measurements
Falling edge
Displays the edge, and the Fall Time and Peak-to-Peak
automatic measurements
Undo Setup Causes the oscilloscope to recall the previous setup

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
