Tektronix TDS1002 User Manual

Operating Basics
TDS1000/2000-Series Digital Oscilloscope User Manual
35

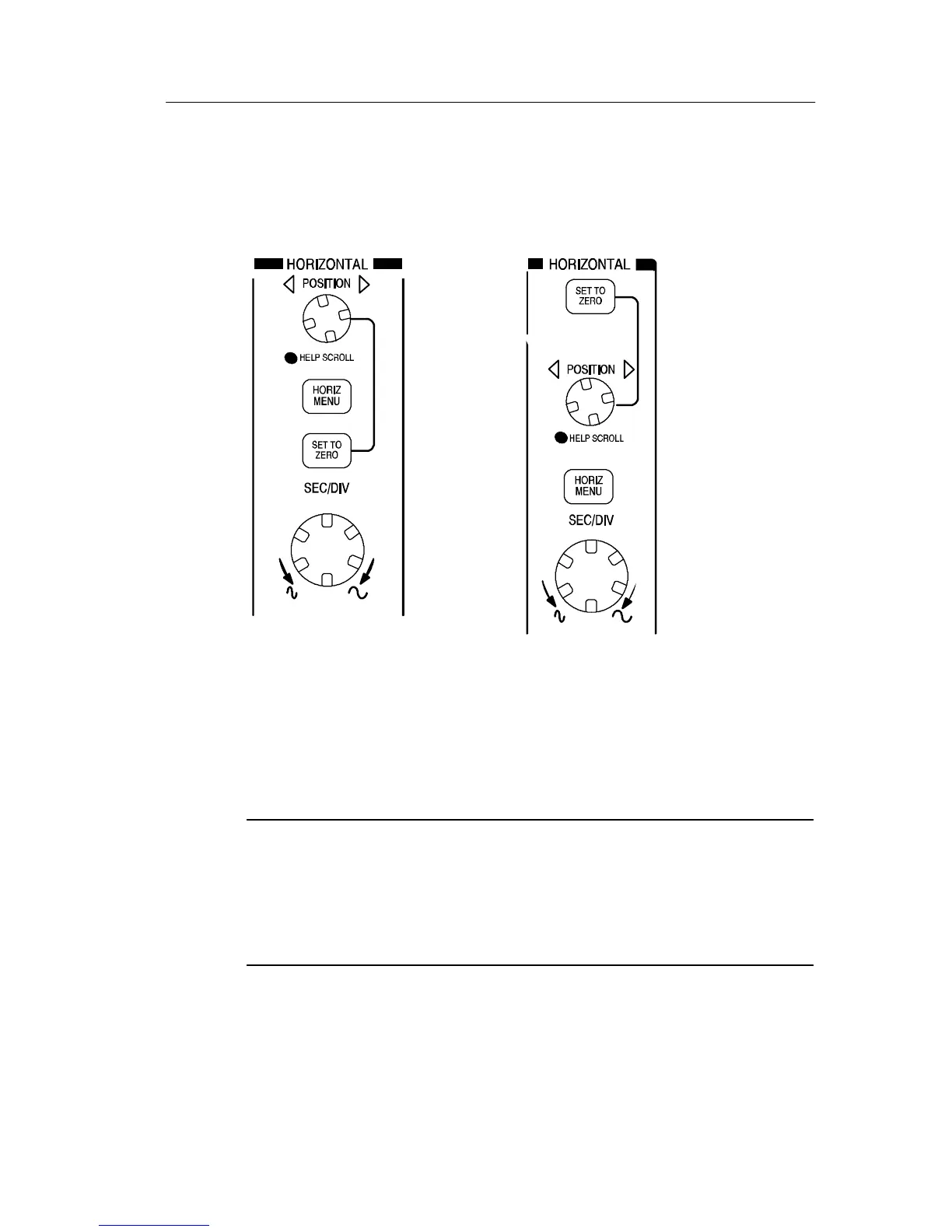

Horizontal Controls
2-channel models
4-channel models
POSITION. Adjusts the horizontal position of all channel and math
waveforms. The resolution of this control varies with the time base
setting. For information on windows, refer to page 92.
NOTE. To make a large adjustment to the horizontal position, turn the
SEC/DIV knob to a larger value, change the horizontal position, and
then turn the SEC/DIV knob back t o the previous value.
When you view he lp topics, you can use this knob to scroll through
links or index entries.

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
