Tektronix TDS1002 User Manual

Understanding Oscilloscope Functions
20
TDS1000/2000-Series Digital Oscilloscope User Manual

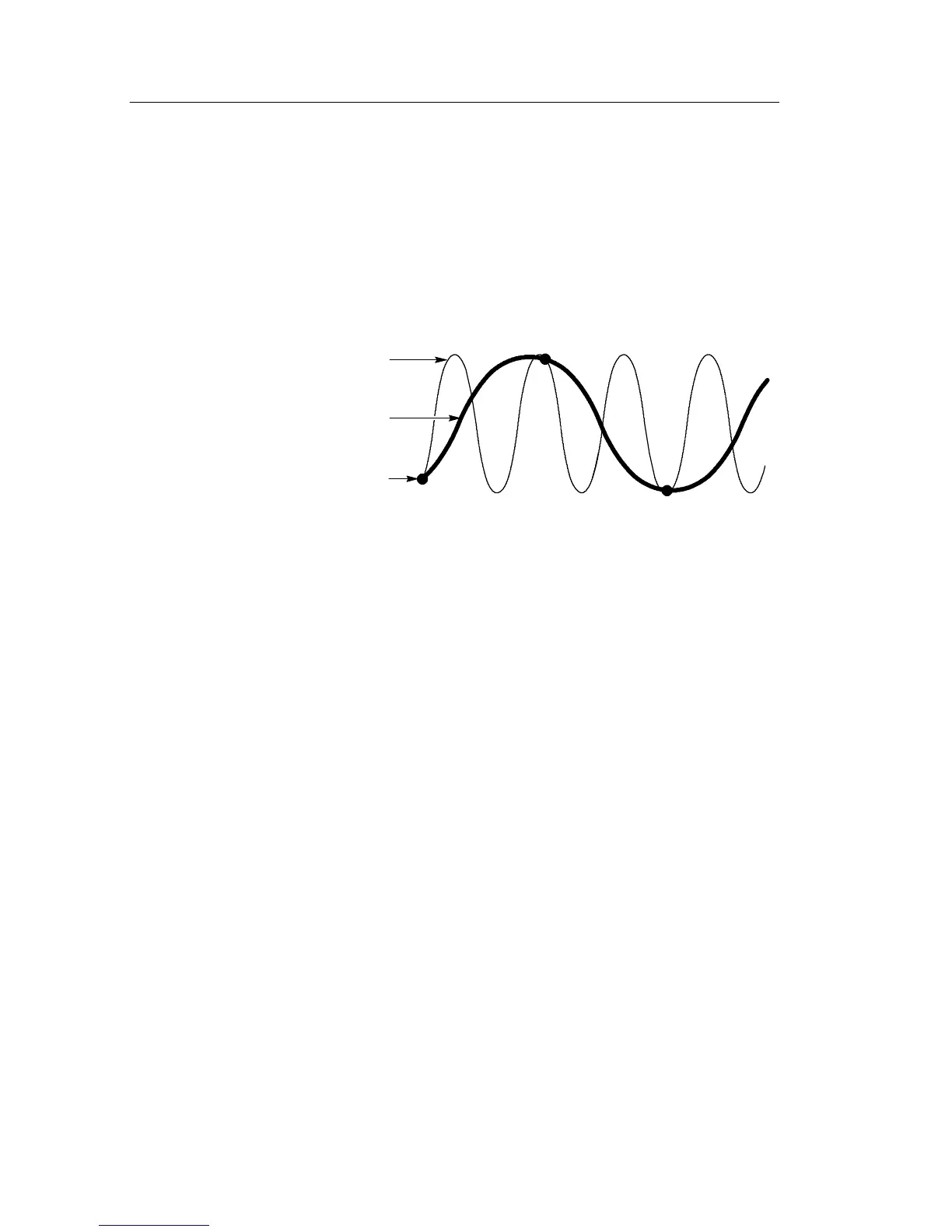

Time Domain Aliasing. Aliasing occurs when the oscilloscope does not
sample the signa l fa st enough to construct an accurate waveform
record. When this happens, the oscilloscope displays a waveform
with a frequency lower than the actual input wave form, or triggers
and displays an unsta ble waveform.
Actual high-frequency
waveform
Apparent low-frequency
waveform due to aliasing
Sampled points
The oscilloscope accurately represents signals, but is limited by the
probe bandwidth, the oscilloscope bandwidth, and the sample rate.
To avoid aliasing, the oscilloscope must sample the signal more than
twice as fast as the highest frequency compone nt of the signal.
The highest frequency that the oscilloscope sampling rate can
theoretically represent is the Nyquist frequency. The sample rate is
called the Nyquist rate, and is twice the Nyquist frequency.

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
