TDS1000/2000-Series Digital Oscilloscope User Manual
109
Holdoff. You can use the Trigger Holdoff function to produce a stable
display of comple x waveforms, such as pulse trains. Holdoff is the
time between when the oscilloscope detects one trigger and when it
is ready to detect another. The oscilloscope will not trigger during
the holdoff time. For a pulse train, you can adjust the holdoff time so
the oscilloscope triggers only on the first pulse in the train.
Holdoff
Holdoff
Indicates
trigger points
Trigger level
Holdoff
Acquisition
interval
Acquisition
interval

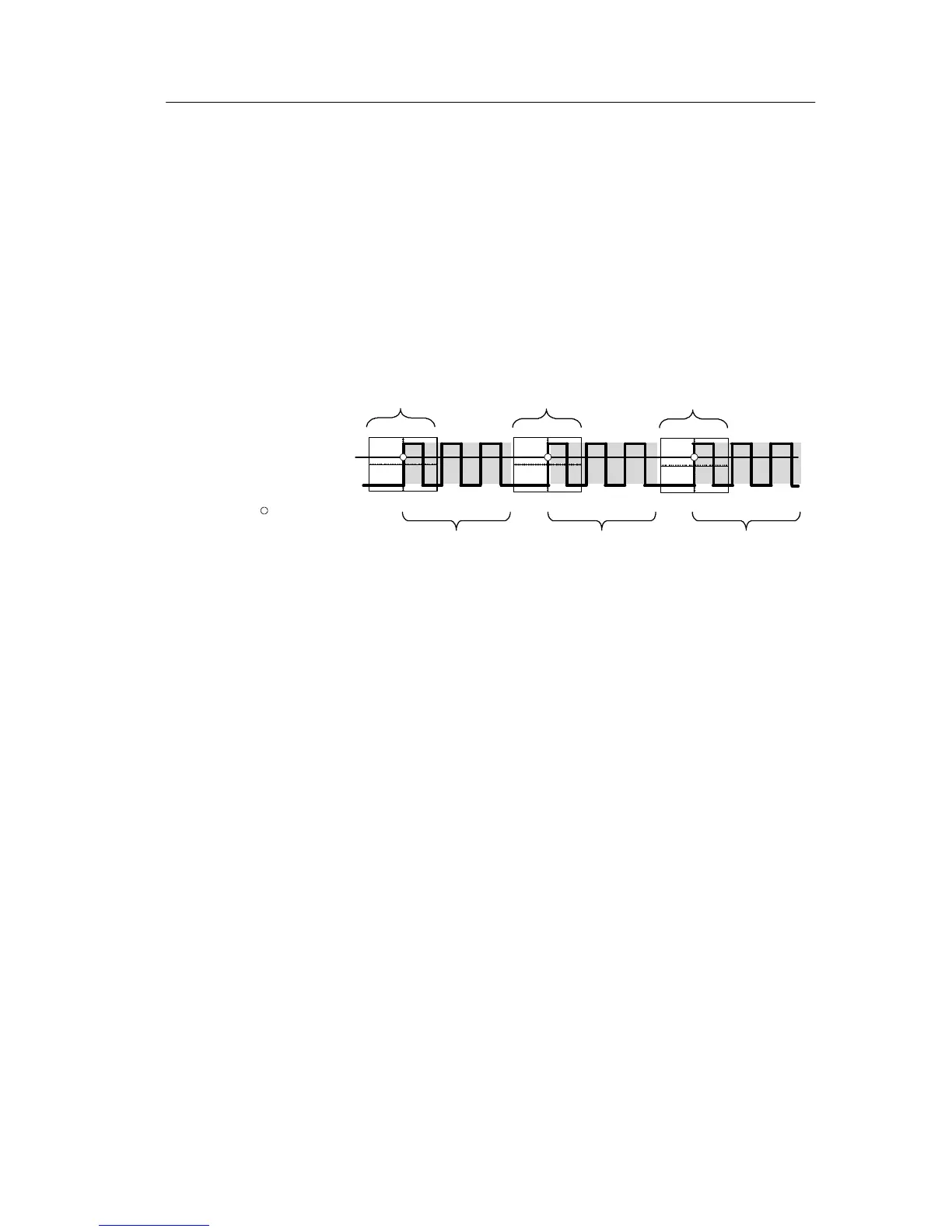

Triggers are not recognized during holdoff time.
Acquisition
interval
Holdoff
To use Trigger Holdoff, push the HORIZ MENU button and set the
Trig Knob option to Holdoff. The USER SELECT LED lights to
indicate the alternative function. Turn the knob to adjust the holdoff.

Tektronix TDS2014 Specifications

General

Channels	4
Bandwidth	100 MHz
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Display	5.7 inch color LCD
Trigger Types	Edge, Video
Interface	USB
Input Impedance	1 MΩ
Power Requirements	100 to 240 V
