Operating Basics
TDS1000/2000-Series Digital Oscilloscope User Manual
39

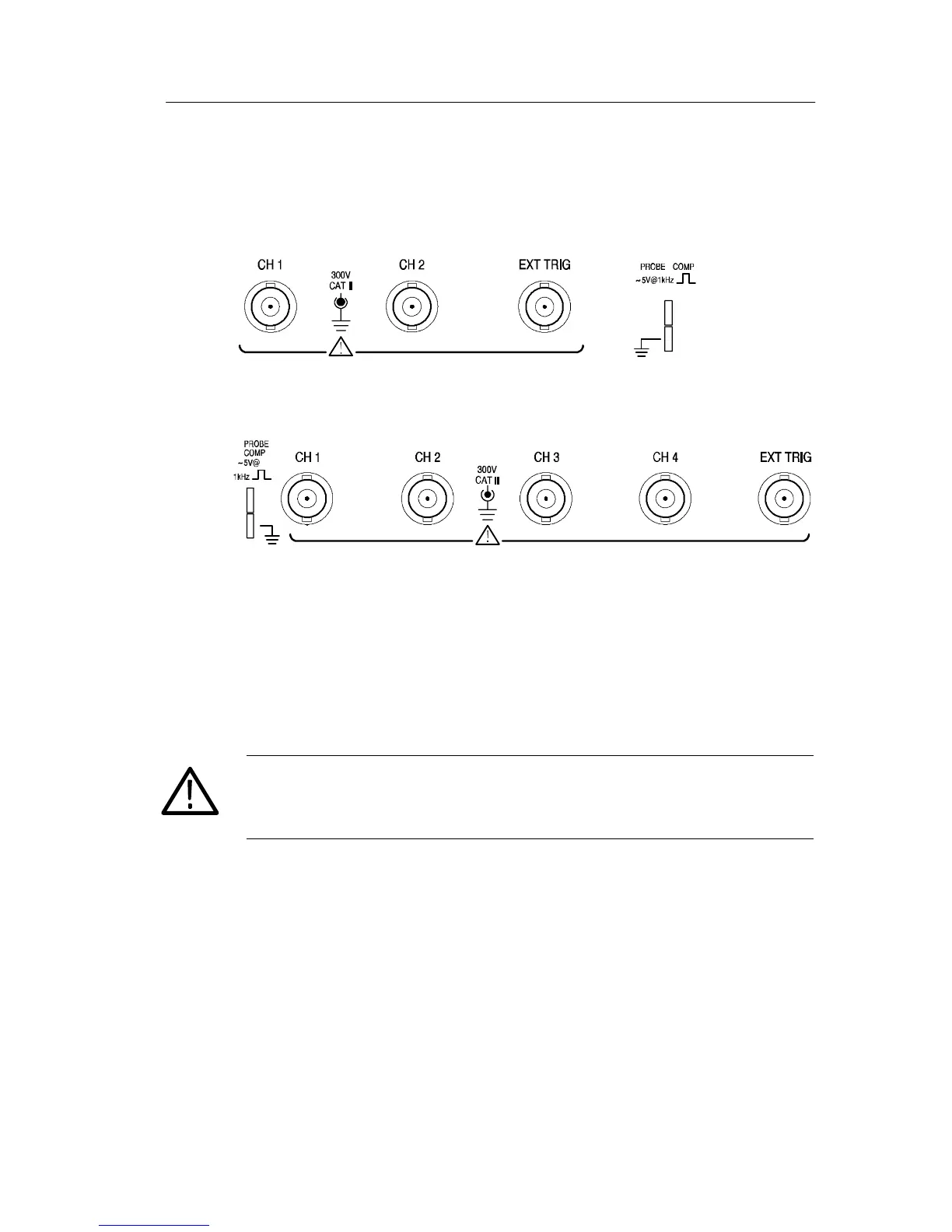

Connectors
2-channel models
4-channel models
PROBE COMP. Voltage probe compensation output and ground. Use to
electrically match the probe to the oscilloscope i nput circuit. Refer to
page 8. The probe compensation ground and BNC shields connect to
earth ground and are considered t o be ground terminals
CAUTION. If you connect a voltage source to a ground terminal, you
may damage the oscilloscope or the circuit under test. To avoid this,
do not connect a voltage source to any ground terminals.
CH 1, CH 2, CH 3 & CH 4. Input connectors for waveform display.
EXT TRIG. Input connector for an external trigger source. Use the
Trigger Menu to sele ct the Ext or Ext/5 trigger source .

Table of Contents

Other manuals for Tektronix TDS2014

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tektronix TDS2014 and is the answer not in the manual?

Tektronix TDS2014 Specifications

General IconGeneral
Channels4
Bandwidth100 MHz
Sample Rate1 GS/s
Record Length2.5k points
Vertical Resolution8 bits
Vertical Sensitivity2 mV/div to 5 V/div
Timebase Range5 ns/div to 50 s/div
Display Resolution320 x 240 pixels
Display5.7 inch color LCD
Trigger TypesEdge, Video
InterfaceUSB
Input Impedance1 MΩ
Power Requirements100 to 240 V
