Tektronix TDS2014 User Manual

Operating Basics
34
TDS1000/2000-Series Digital Oscilloscope User Manual

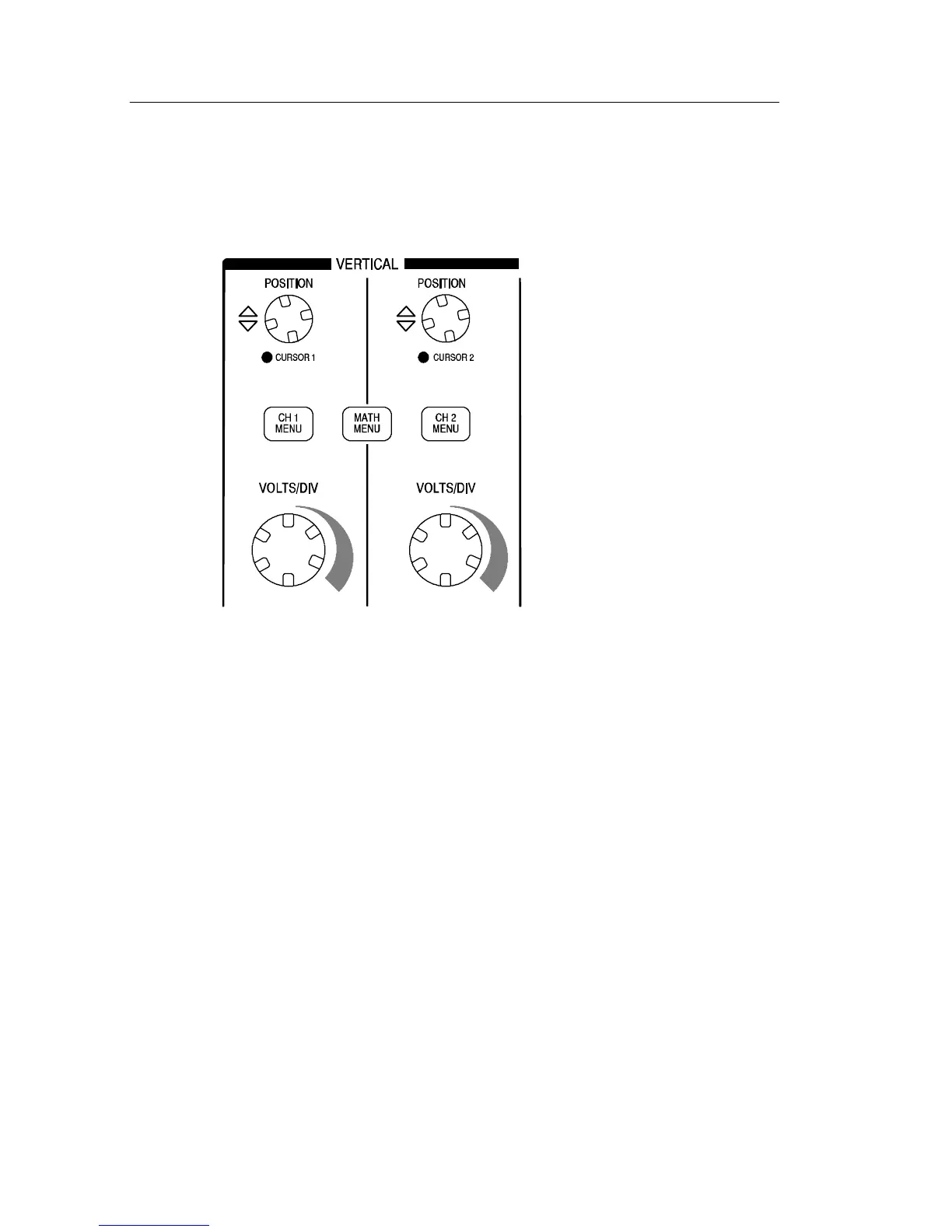

Vertical Controls
All models
CH 1, CH 2, CH 3, CH 4, CURSOR 1 and CURSOR 2 POSITION. Positions
the waveform vertically. When you displa y and use cursors, an LED
lights to indic ate the alternative function of the knobs to move the
cursors.
CH 1, CH 2, CH 3 & CH 4 MENU. Displays the vertical menu selections
and toggles the display of the c hannel waveform on and off.
VOLTS/DIV (CH 1, CH 2, CH 3 & CH 4). Selects calibrated scale factors.
MA TH MENU. Displays waveform math operations menu and can also
be used to toggl e the m ath waveform on and off.

Tektronix TDS2014 Specifications

General

Channels	4
Bandwidth	100 MHz
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Display	5.7 inch color LCD
Trigger Types	Edge, Video
Interface	USB
Input Impedance	1 MΩ
Power Requirements	100 to 240 V
