Tektronix TDS5000B Series Instructions

Kit Description
TDS5000B Series (Option 1R) Rackmount Kit
5
When the instrument is installed according to the instructions in this document,
the rackmounted instrument meets all warranted requirements listed in the
instrument specification except for those listed in Environmental Requirements
on page 6. Instruments mounted using methods other than those described in
these instructions may not meet their warranted requirements.
See the specifications for your instrument model for tables of the warranted
characteristics.

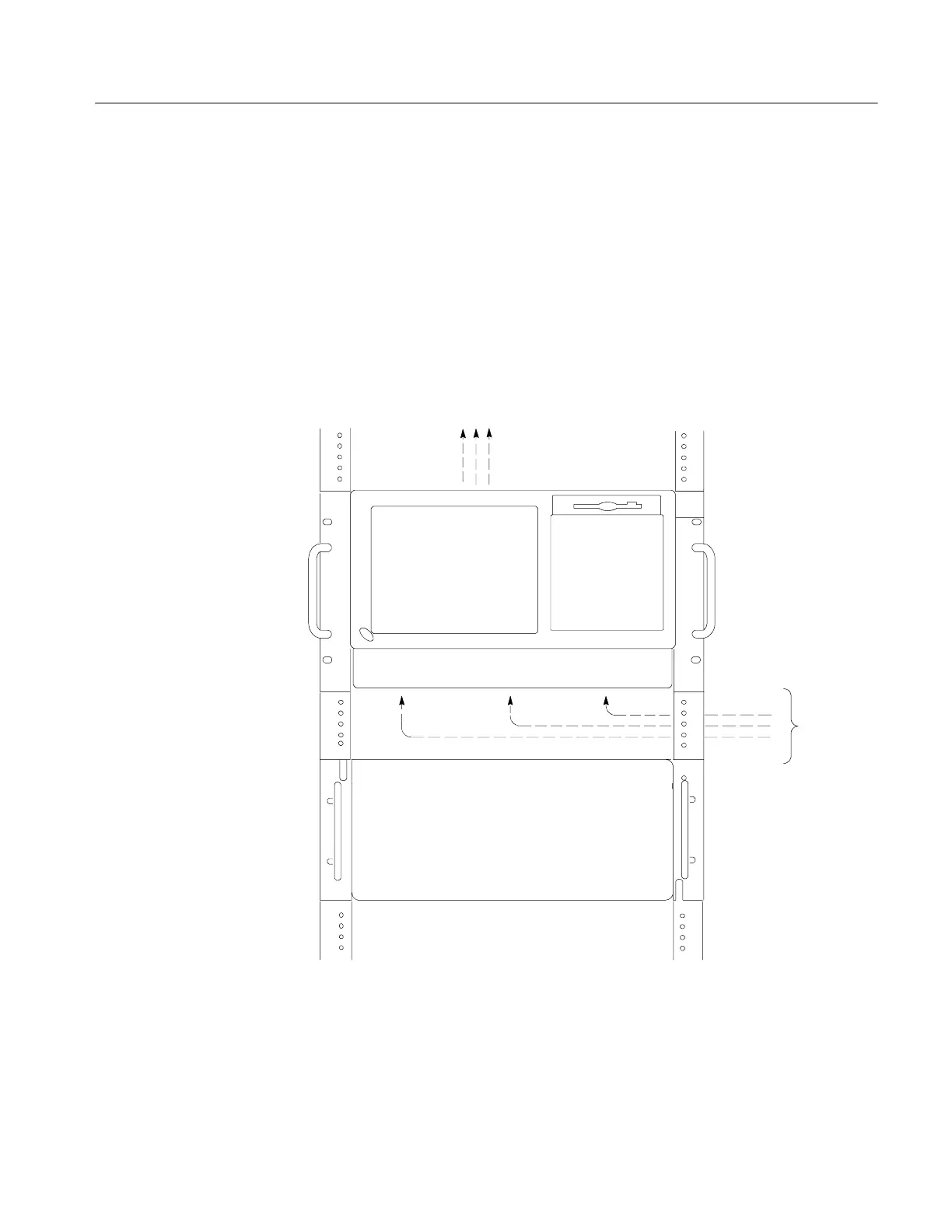

Cooling air enters on the bottom and right sides as shown in Figure 2. You must
provide adequate cool air to meet the ambient temperature requirements listed in
Table 1.
Cool air in
Hot air out (rear)
Measure
input air
temperature
Figure 2: Instrument cooling
Warranted Characteristics

Tektronix TDS5000B Series Specifications
