Tektronix TDS7104 Reference Manual

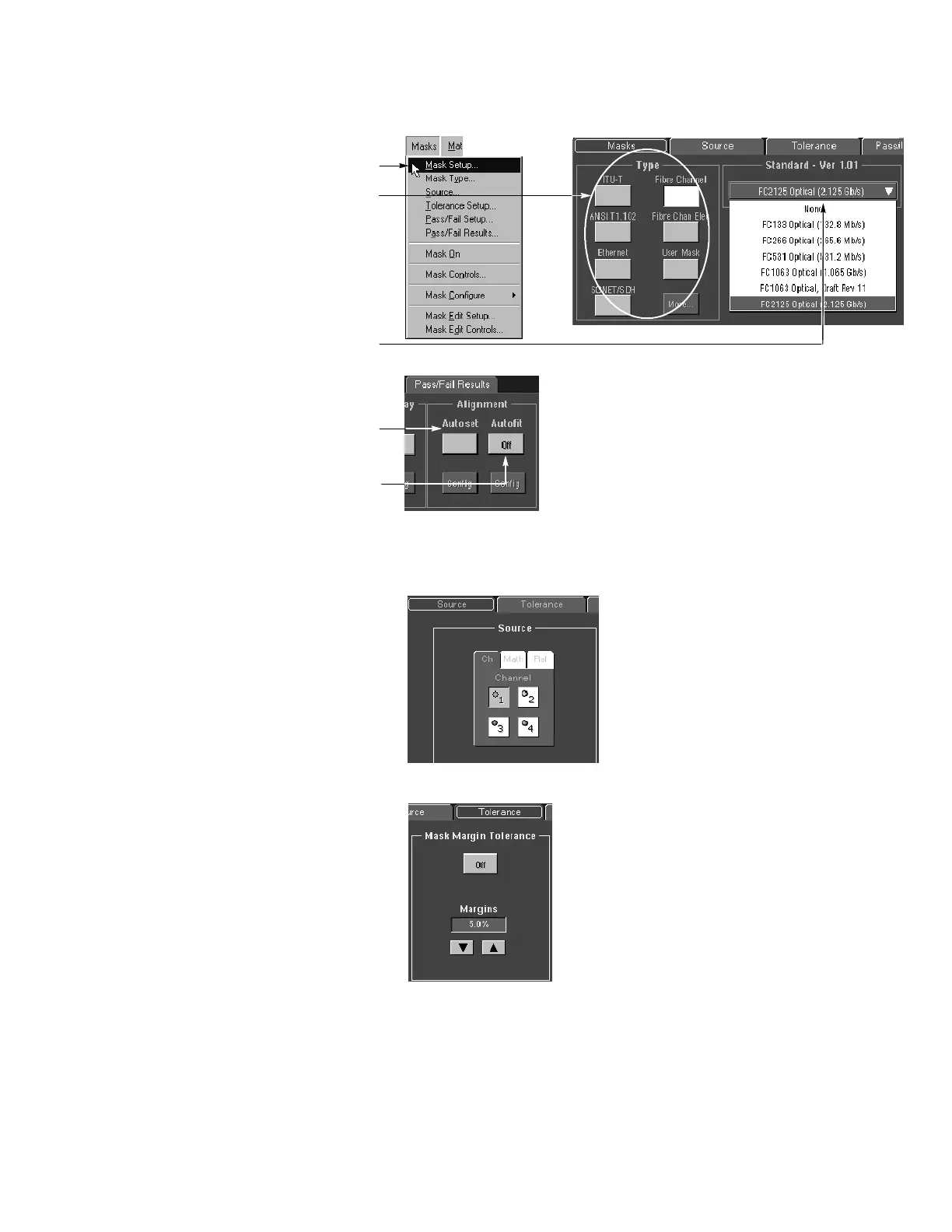

Select Mask Setup in the Masks menu.
To Perform Mask Testing
(CSA7000, optional on TDS6000 and TDS7000 Series)
1
Choose a mask t ype.
Choose a mask st andard.
2
3
Select Autoset to automatically set up the
controls based on the input signal.
Use the Source tab to select the source of
your signal.
4
Optionally select Autofit to align each
acquired signal with the mask to
minimize the number of hits.
5
Use the Tolerance tab to increase or decrease
the mask m argin used in mask testing.
