Connectors for speaker and microphone
RJ-45 connector to connect to network

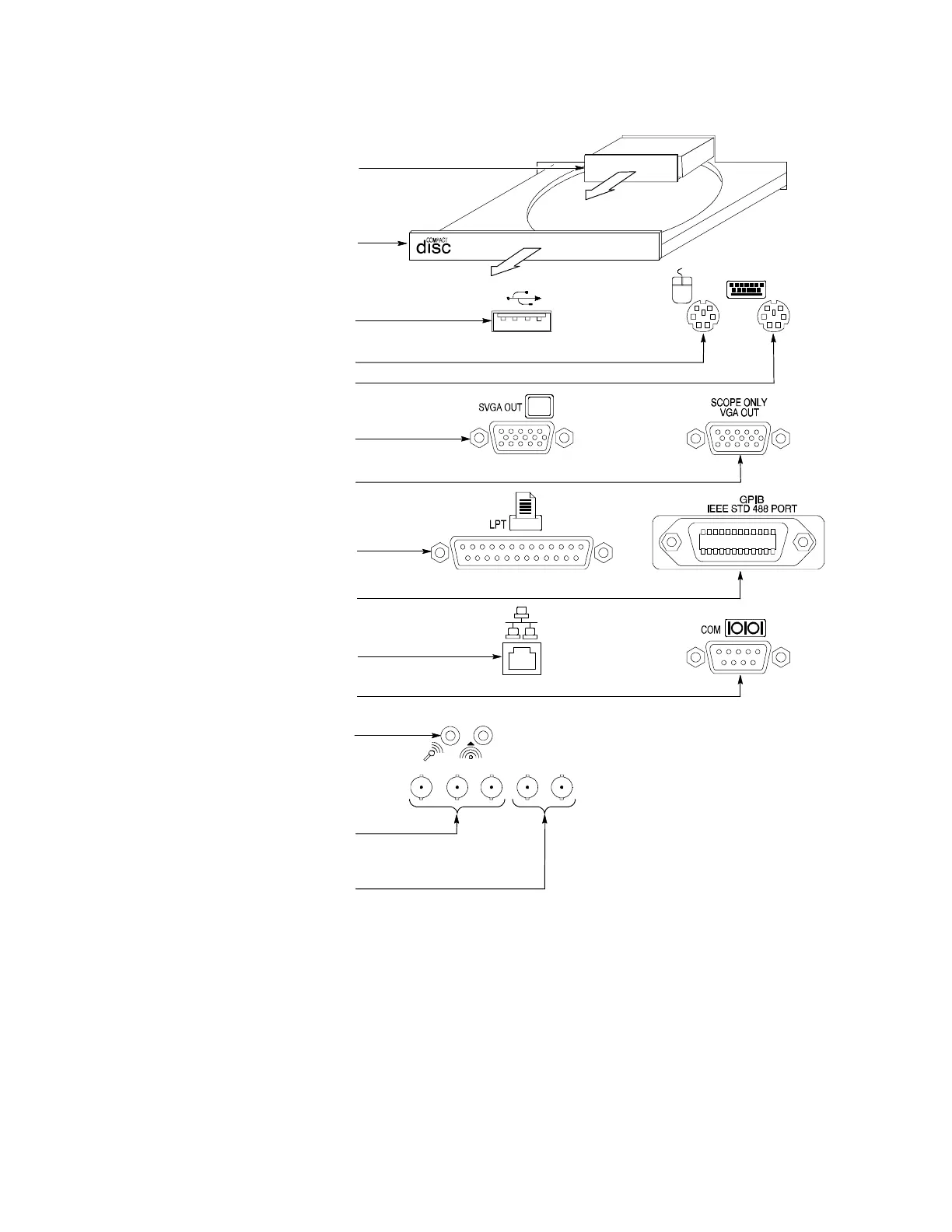

Rear Panel Inputs and Outputs
Removable hard disk drive to provide
individual environment for each user or to
secure data; press cover to release the disk
USB connector for mouse, keyboard, or other
peripherals
COM1 serial port
Upper SVGA port to connect a monitor for
dual-monitor operation
Lower VGA port to replicate the oscilloscope display
on an external monitor
PS-2 connector for mouse
Parallel port (Centronics) to
connect printer or other device
GPIB port to connect to controller
CD-RW drive accessible from Windows;
press cover to open the drive
CSA7000 only: Auxiliary (external trigger)
input, Auxiliary (trigger) output signal,
Analog (CH 3) signal output
External reference input and
internal reference output
PS-2 connector for keyboard
