To Take Measuremen ts With Cursors
H You can set the cursors to move together i n tandem if you choose the Tracking
cursor mode. The cursors move independently if you choose the Independent
cursor mode.
H If you use the zoom graticule, you can place a cursor direct ly on a specific
waveform point to take precisi on measurements.
H You can also move cursors by t ouching or cl icking them and then dragging them
to a new positi on.
Other Cursor Measurement Tips:

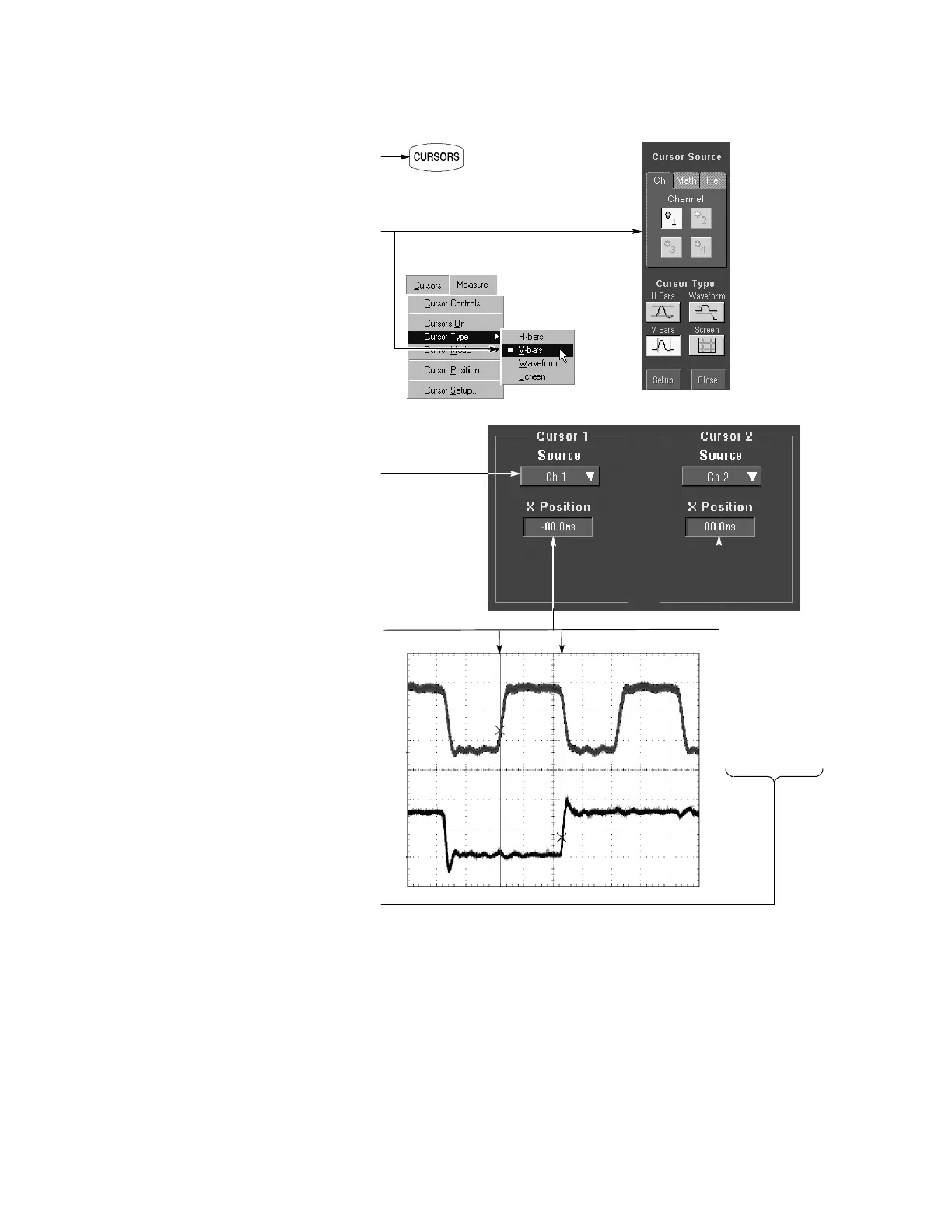

Select the waveform you want to measure and
a cursor type in the cursor control window.
Or you can activate cursors on the selected
waveform directly in the
Cursor menu.
If you choose Waveform cursors to take
measurements between waveforms,
select the source for each cursor.
T1: 356.4 ms
T2: 352.5 ms
∆T: 3.92 ms
1/∆T: 255 Hz
V1: 5.120 V
V2: 4.886 V
∆V: 234 mV
∆V/∆T: 59.7 V/s
1
2
4
Read cursor measurement
results in t he display.
5
Push the front-panel CURSORS button.
Push Setup and place cursors with the
multipurpose knobs or enter the cursor
locations num eri cally.
3
