Tektronix TDS7104

Mechanical Parts List
TDS7104 & TDS7054 Service Manual
10- 13
1 2 3 4 5

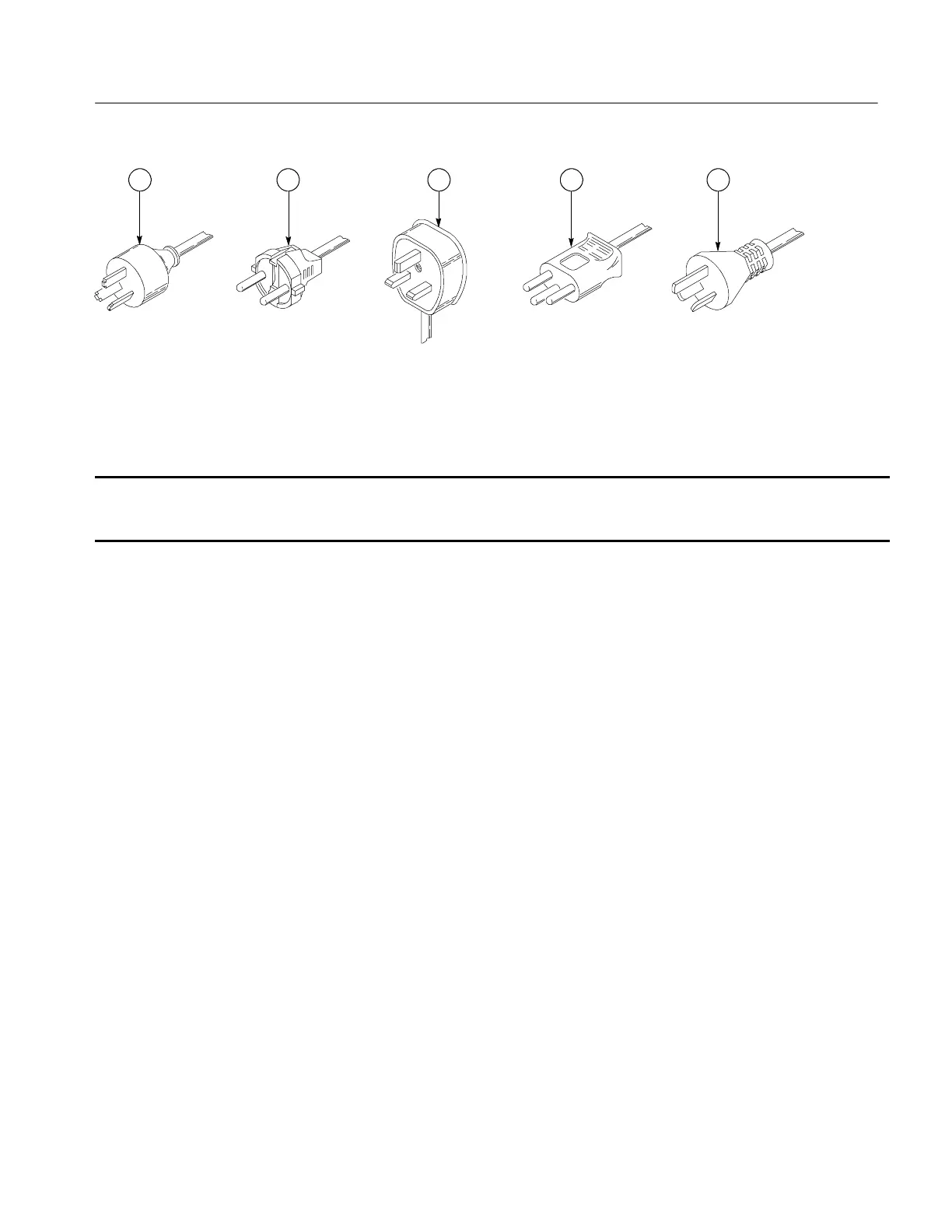

Figure 10- 5: Accessories
Replaceable Parts List
Fig. &
index
number
Tektronix
part number
Serial no.
effective
Serial no.
discont’d
Qty Name & description
Mfr.
code
Mfr. part number
STANDARD ACCESSORIES
10--5--1 161--0104--05 1 C A ASSY,PW R:3,1.0MM SQ,250V/10A,2.5 M
(OPTION A3 -- AUSTRALIAN)
S3109 198--010
--2 161--0104--06 1 CA ASSY,PWR:3,1.0MM SQ,250V/10A,2.5 M
(OPTION A1 -- EUROPEAN)
S3109 198--010
--3 161--0104--07 1 CA ASSY,PWR:3,1.0MM SQ,240V/10A,2.5 M
(OPTIONA2--UNITEDKINGDOM)
S3109 209010
--4 161--0167--00 1 CA ASSY,PWR:3,0.75MM SQ,250V/10A,2.5 M
(OPTION A5 -- SWITZER LAND)
S3109 ORDER BY DESC
--5 161--0306--00 1 CA ASSY,PWR:3,1.0MM SQ,250V/10A,2.5 M
(OPTION AC -- CHINA)
TK6253 92--2637--250BKH
---------------- 1 CABLE ASSY,PWR,:3,18 AWG,92 L
(STANDARD CABLE -- SEE FIG 10--1--6)
---------------- 1 POUCH, PLASTIC:POUCH
(STANDARD CABLE -- SEE FIG 10--1--1)
TK2582 T K1441 BLACK
CORDURA
020--2437--03 1 SOFTWARE KIT:OS RESTORE,WIN 98 RESTORE CD 80009 020--2437--03
020--2498--00 1 SOFTWARE KIT:OS RESTORE,WIN 2000 RESTORE CD 80009 020--2498--00
020--2404--02 1 REFERENCE KIT:LANGUAGE MANUALS,TDS7054,TDS7104 80009 020--2404--02
071--7010--02 1 MANUAL,TECH:USER,TDS6000,TDS7000 TK2548 071--7010--02
071--7000--02 1 MANUAL,TECH:REFERENCE,ENGLISH,TDS6000,TDS7000 TK2548 071--7000--02
119--6298--00 1 MOUSE:LOGITECCH WHEEL MOUSE 46628 830306--001
067--0405--02 1 FIXTURE,CAL:PROBE CAL DESKEW 80009 067--0405--02
020--2449--02 1 ACCESSORY KIT:OSCILLOSCOPE ANALYSIS &
CONNETIVITY MADE EASY MANUAL W/SW
TK2548 020--2449--02
063--3376--09 1 SOFTWARE PKG:PRODUCT SOFTWARE,V2.3.2,CD TK2548 063--3376--09
OPTIONAL ACCESSORIES
119--6633--00 1 KEYBOARD:USB KEYBOARD CHERR 01963 G81--3505--LAAUS
