Tektronix VM Series Quick Start User Manual

Getting Acquain
tedwithYourInstrument

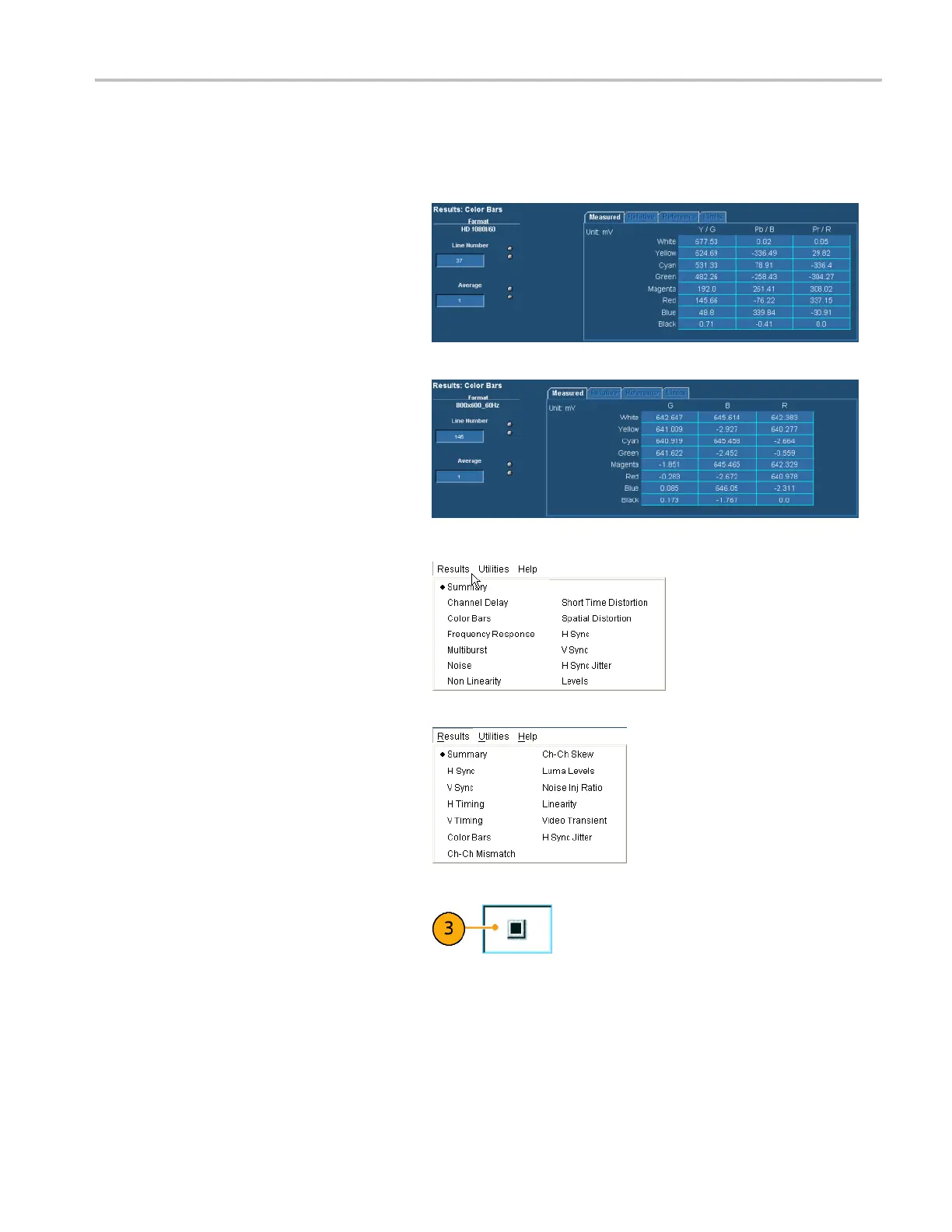

Taking and Viewing Measurements
Before taking a measurement, remember to select a signal format, select the desired measurements, and configure the
run options.
1. Select the Run button. The instrument
begins taking measurements and
displays the measurement results
view for the most recently-selected
measurement result.
Option SD /HD
Option VGA
2. To view the results of other
measurements, select the measurement
from the Results menu. For example,
to view the Sync measurement results
(Option SD/HD only), select Results >
Sync.
Option SD /HD
Option VGA
3. If you set the run operation to
Continuously, press the Stop button to
stop taking measurements.
VM Series Video Measurement System Quick Start User Manual 41
