Applications
Performing Limit Testing with Two Measurements
The VM Series system can perform limit test ing with m ore than one measurement at a time.

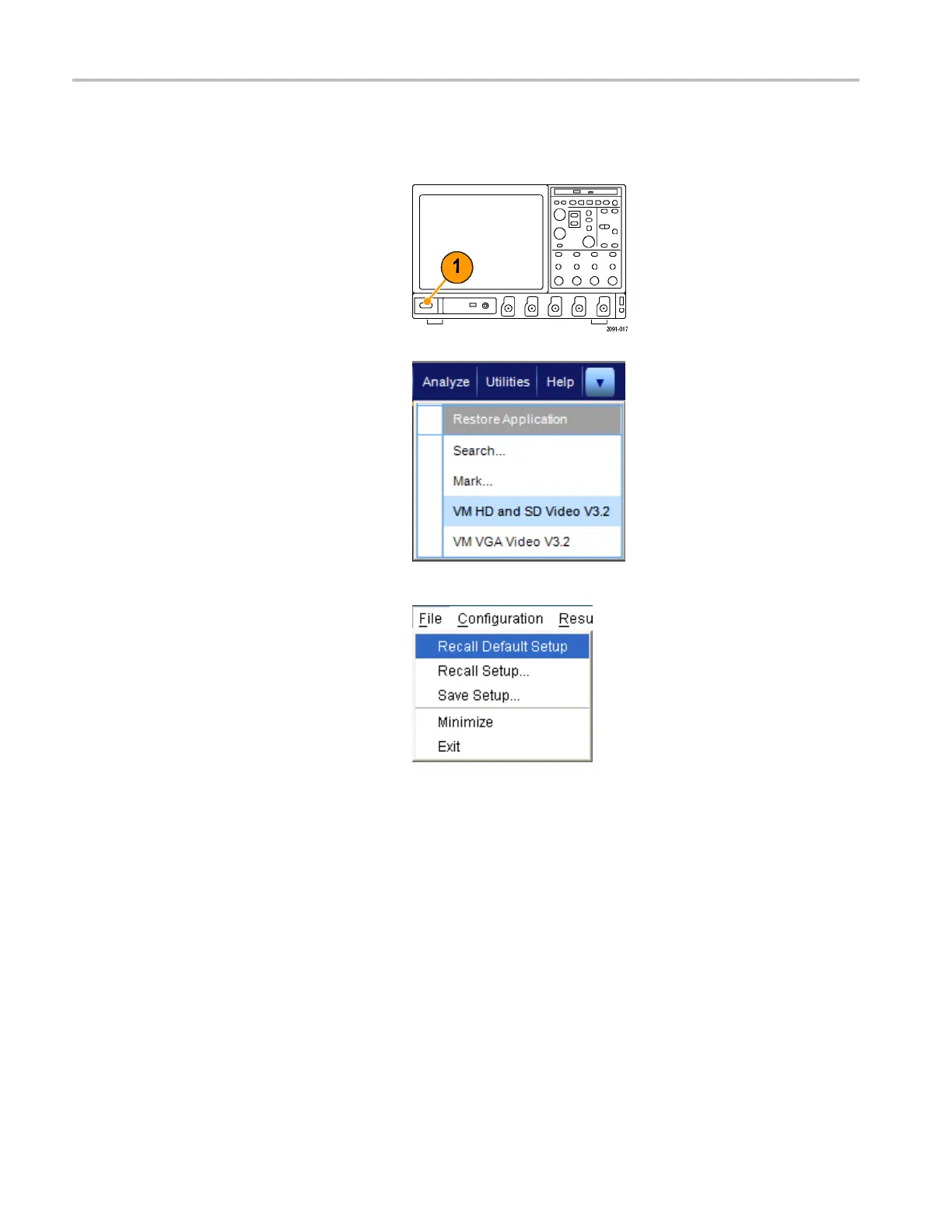

1. Power on the instrument.
2. Select Analyze > VM HD and SD Video
V3.2 or VM VG
A Video V3.2.
Option SD/HD
3. Select File > Recall Default Setup to
return all settings to the factory default
values.
4. Connect a signal to the inputs. (See
page 9, Co
nnecting Input Signals.)
5. Select
the input signal format. (See
page 32, Setting the Input Signal Format
– Options SD/HD.) (See page 34, Setting
the Inp
ut Signal Format – Option VGA.)
64 VM Series Video Measurement System Quick Start User Manual
