When the measur
ements are complete,

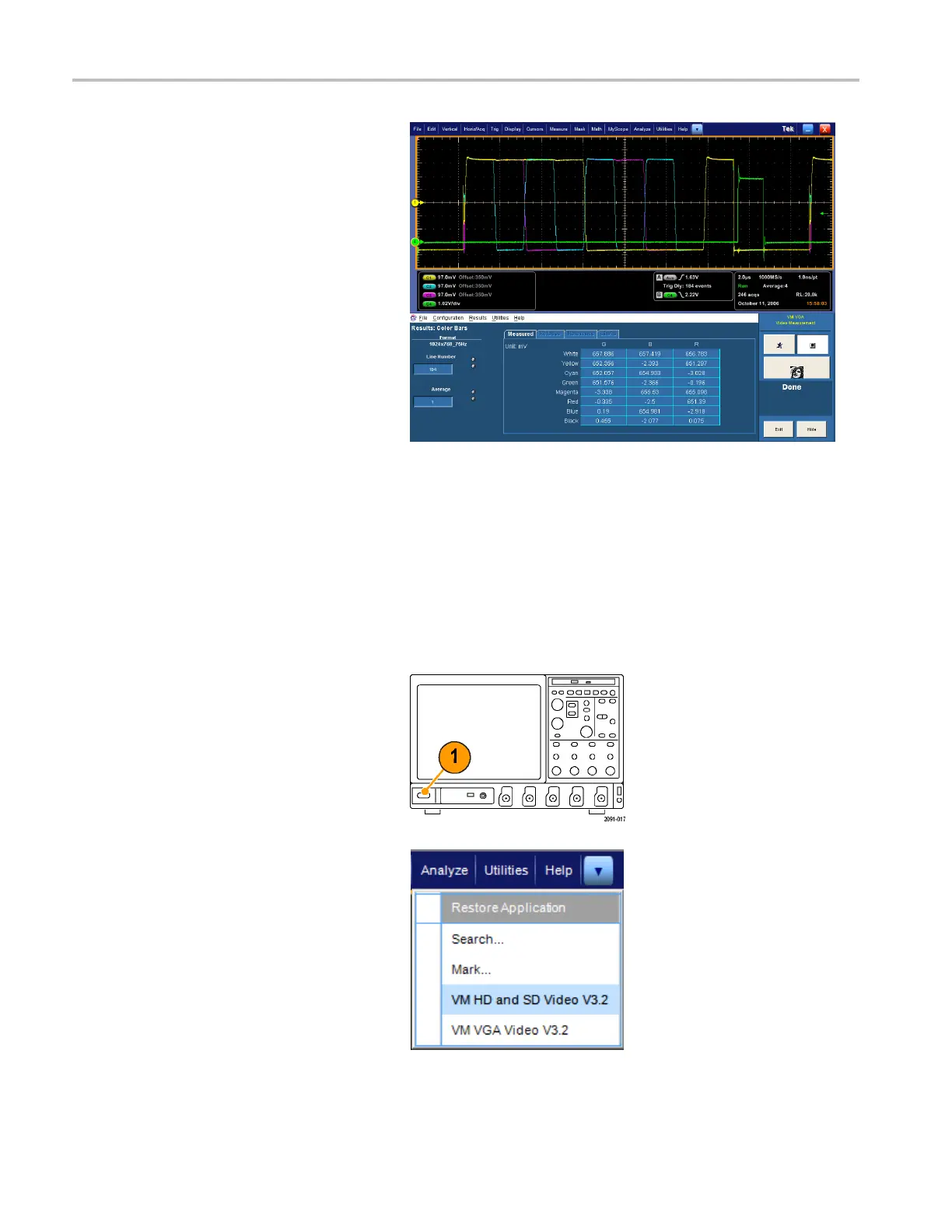

the results screen is displayed.
Displaying Relative to Reference Color Bar Measurements
The VM Seri
es system displays measurement results two ways: as measured and relative to a reference v alue. The relative
value is calculated by subtracting the measured value from a reference value. To display m easurement results relative to a
reference, you must s elect Enable Relative Results in the Refer e nce & Limits tab of the Configuration screen. Reference
values ar
e specified in special comma-separated-value (CSV) text files. The VM Series s ystem includes a set of template
files that you c an edit, so that you can specify the reference values appropriate to your application.
1. Power on the instrument.
2. Select Analyze > VM HD and SD Video
V3.2 or VM VGA Video V3.2.
