Tektronix VM Series Quick Start User Manual

Applications
Active Video Line Number Location of Patterns at 60 Hz Refresh Rate (640x480 to 1280x1024) (cont.)
Pattern 640x480 800x600 1024x768 1280x1024
Ramp 372 – 467 448 – 567 573 – 726 757 – 962
Half White and Half Black
468 – 515 568 – 627 727 – 803 963 – 1065
Active Video Line Number Location of Patterns at 60 Hz Refresh Rate (1600x1024 to 1900x1200)
Pattern 1600x1024 1600x1200 1920x1080 1920x1200
Half White and Half Black
36 – 132 50 – 169 38 – 140 43 – 162
Nine Colorbars
143 – 337 170 – 409 150 – 356 163 – 402
Staircase
347 – 439 410 – 529 366 – 464 403 – 522
Alternate White and Black 450 – 542 530 – 649 474 – 572 523 – 642
Black White Black 552 – 644 650 – 769 582 – 680 643–762
Full White 655 – 747 770 – 889 690 – 788 763 – 882
Ramp 757 – 951 890 – 1129 798 – 1004 883 – 1122
Half White and Half Black
962 – 1059 1130 – 1249 1014 – 1117 1123 – 1242
Active Video Line Number Location of Patterns at 60 Hz Refresh Rate (1920x1440 to 2048x2048)
Pattern 1920x1440 2048x1536 2048x2048
Half White and Half Black
50 – 193 53 – 198 71 – 265
Nine Colorbars
194 – 481 213 – 505 285 – 674
Staircase
482 – 625 520 – 659 695 – 879
Alternate White and B lack 626 – 769 674 – 812 899 – 1084
Black White Black 770 –913 828 – 966 1104 – 1289
Full White 914 – 1057 981 – 1120 1309 – 1493
Ramp 1058 –1345 1135 –1427 1514 – 1903
Half White and Half Black
1346 – 1489 1442 – 1588 1923 –2118
The VM Series system performs the color bars measurements by first identifying the relative amplitudes of each of the three
channels. Eight amplitude measurements are made on each channel, giving a total of 24 measurements in less than half a
second; the following steps show the typical measurement results performed on a 1024x768 signal. The amplitude level of
each of the bar levels is measured relative to the back porch. Amplitudes are calculated using waveform averaged values
within each identified bar. Therefore, it is important to ensure that the full video is displayed in the capture window of the
instrument if manual setup has been performed on the unit.

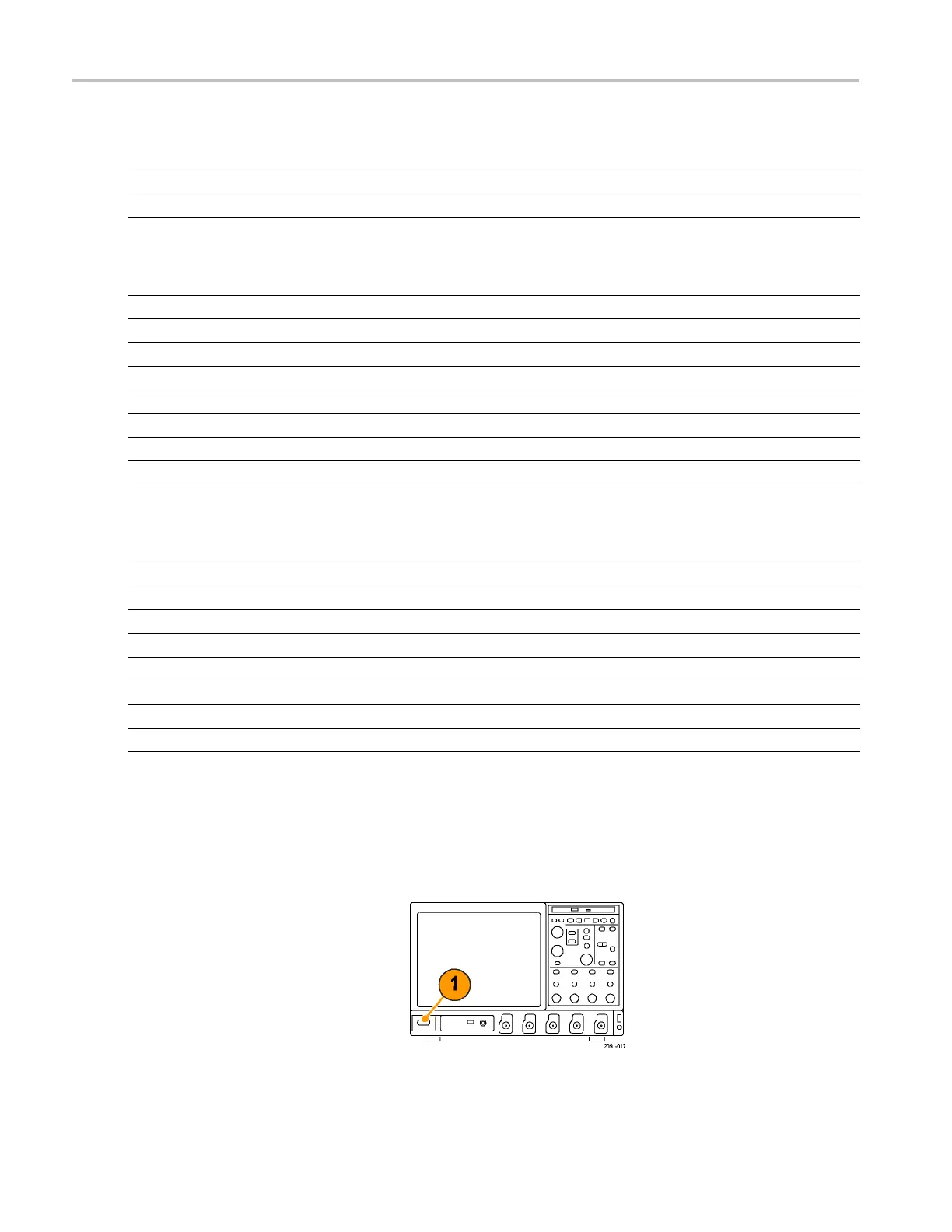

1. Power on the instrument.
52 VM Series Video Measurement System Quick Start User Manual
