Tektronix WFM4000 Series User Manual

Getting Acquain
ted With Your Instrument

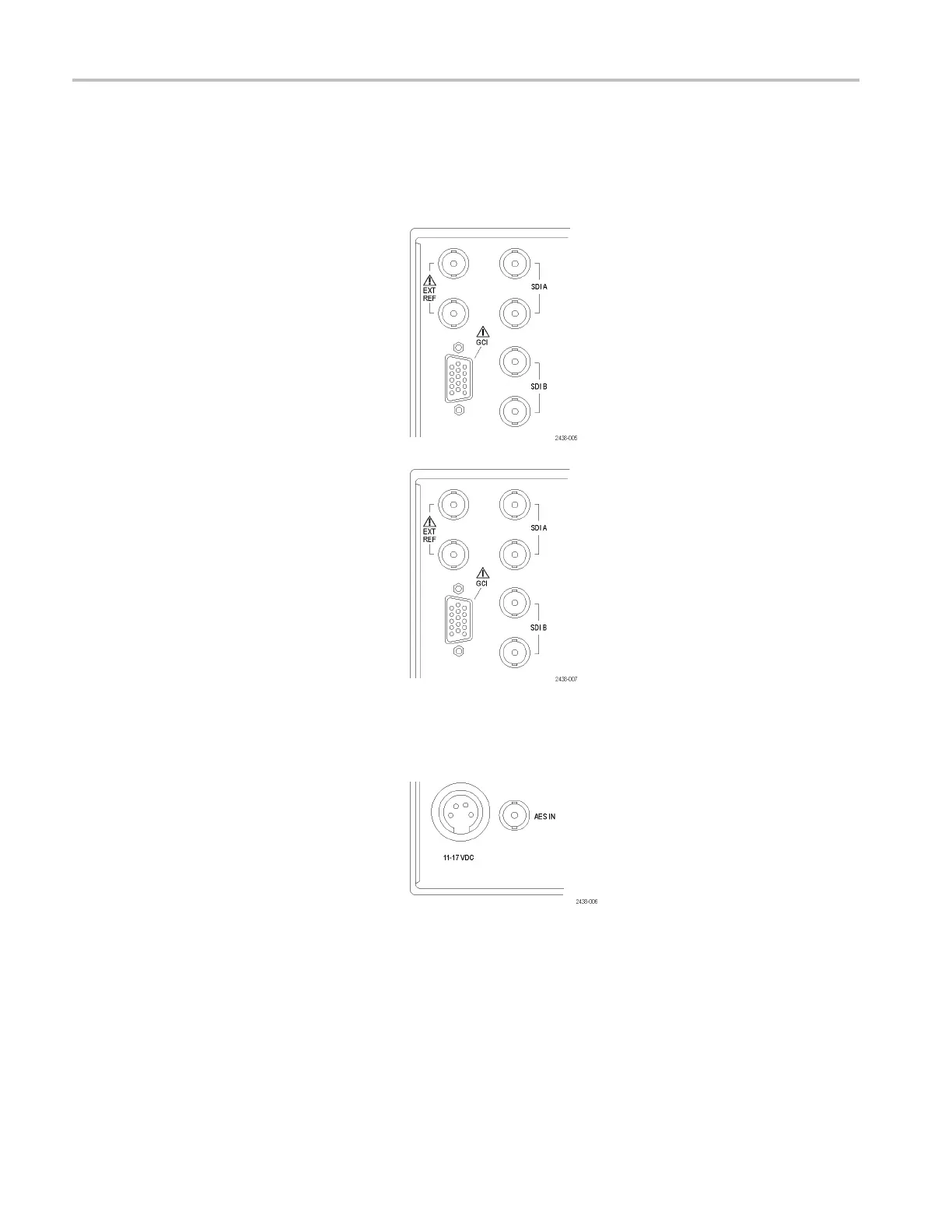

Video Input Connectors
All SDI inputs
are passive inputs
compensated for 75 Ω and require
termination.
1. Ref Loop. A synchronization input.
The input sig
nal can be analog black
burst, analog composite video, or
analog tri-level for HD. Requires 75 Ω
terminatio
n.
2. SDI A. The Digital A component serial
digital input is compensated for 7 5 Ω and
requires termination.
3. SDI B. The Digital B component serial
digital input is compensated for 7 5 Ω and
requires termination.
AES IN Connector
1. This BNC connector supports AES IN
audi
o input.
12 WFM4000 and WFM5000 Waveform Monitors User Manual
