Monitoring Audio
Your instrument provides several methods for monitoring audio signals. It can measure levels, phase, and phase correlation.
You can specify meter ballistics and scales, set test and peak program indicator levels, and specify how phase is displayed.
Configuring Audio Inputs
Audio inputs
are initially set to factory defaults. As a result, you may need to con figure them before performing the audio
monitoring procedures in this section. The first procedure w ill help you configure the inputs. After you have completed that
procedure, check that the alarms are configured as you want them. (See page 44, Monitoring Audio.) Your setup here
determines
, in part, which audio-signal characteristics are displayed.
To set up an A
udio Input:

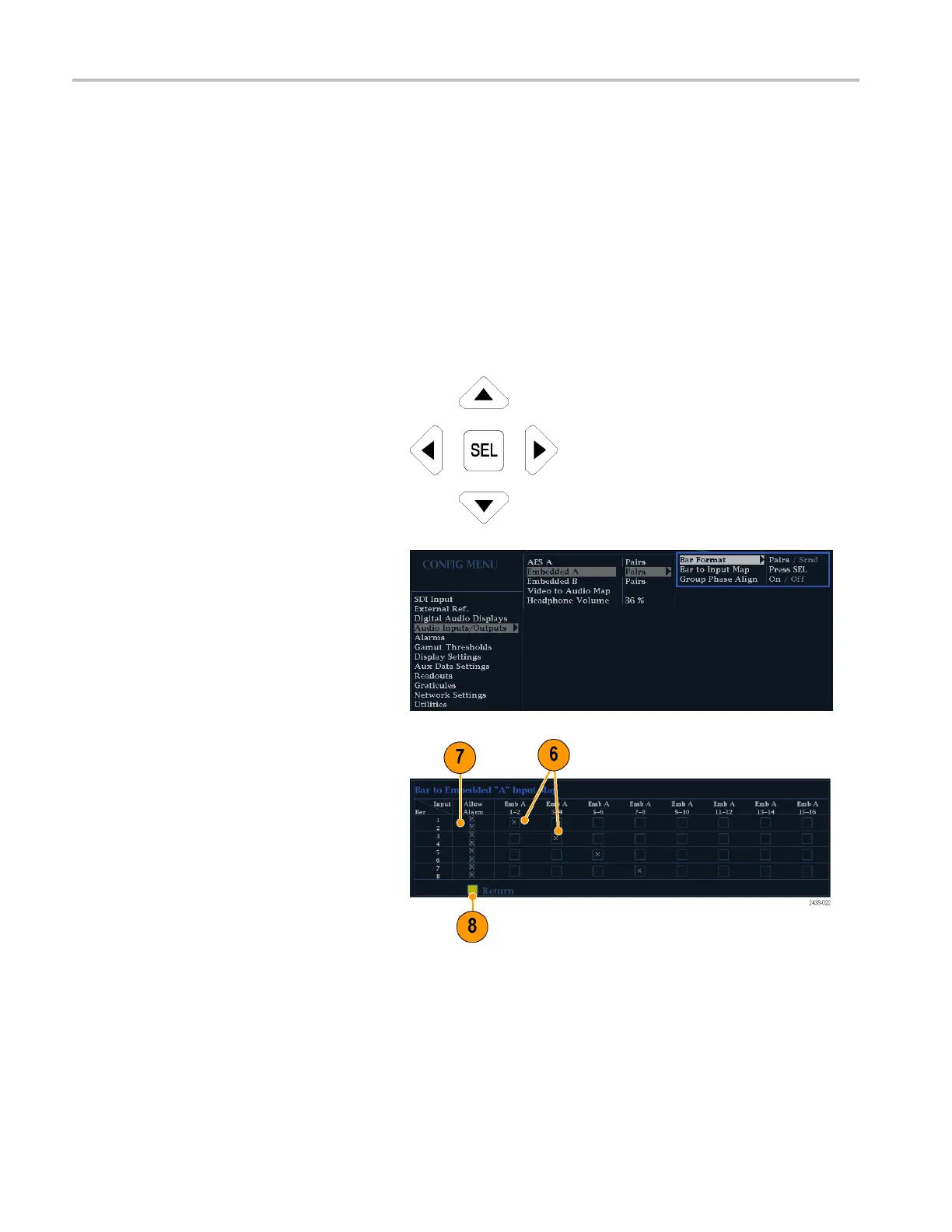

1. Press the C
ONFIG button to display the
Configuration menu.
2. Use the Arrow keys and SEL button to
make selections in the steps that follow.
3. Select A
udio Inputs/Outpu ts.
4. Select t
he input to be configured.
5. Select Bar to Input Map and specify
which input pair should be displayed in
each bar pair.
6. Specify which inputs will be allowed to
generate alarms.
7. Select the Return box to return to the
Configuration menu.
8. Repeat steps 4 through 7 for other audio
inp
uts, as needed.
44 WFM4000 and WFM5000 Waveform Monitors User Manual
