ARIB STD-B.37 Display and Status Screens
The ARIB STD-B.37 display shows the decoded data for video signals using ancillary data compliant with ARIB STD-B.37.
(See Figure 6.) When this display is selected, the i nstrum ent searches the signal for ARIB STD-B.37 packets using the
DID/SDID combinations defined by ARIB.

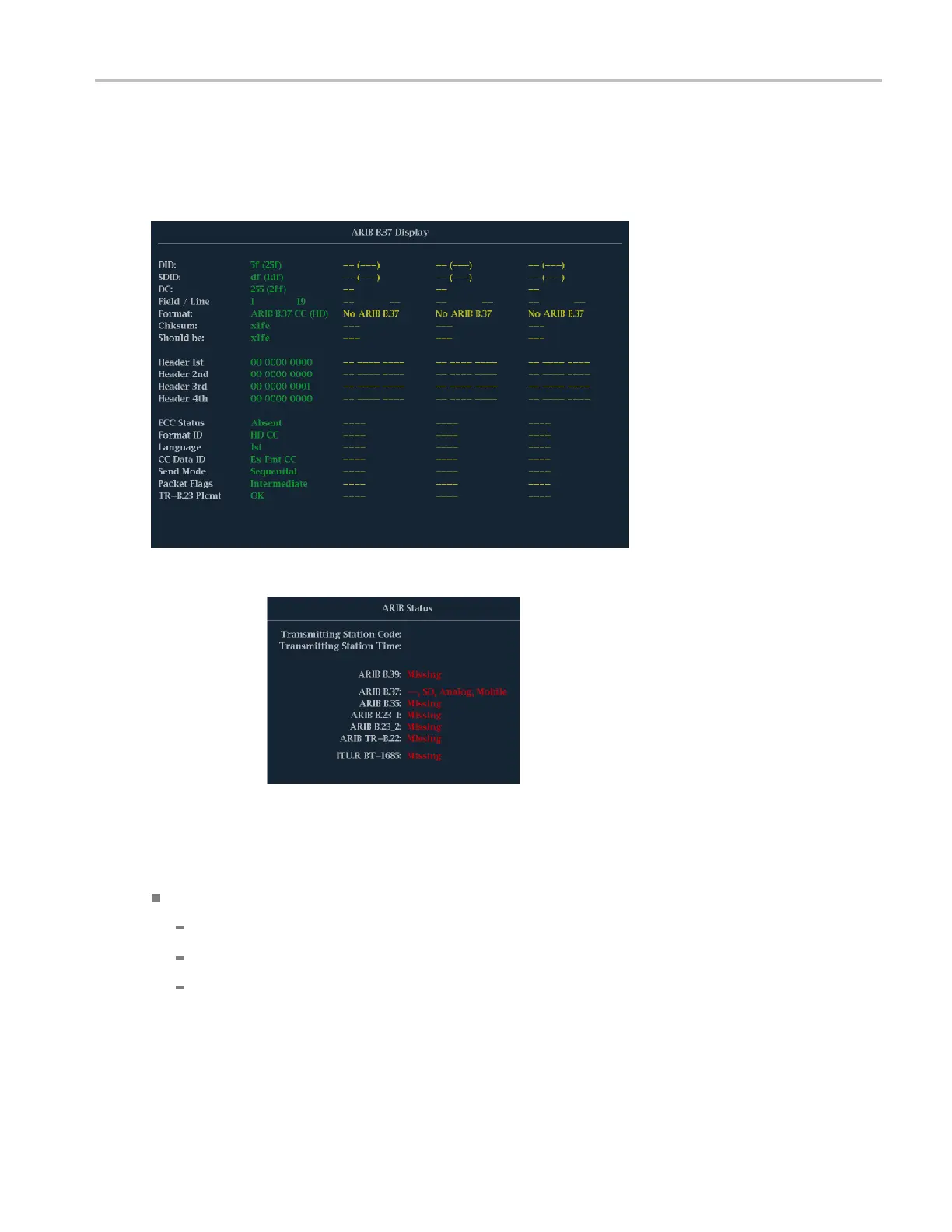

Figure 6: ARIB STD-B.37 display (wit h the associated ARIB Status display)
The decoded ancillary data includes the following:
DID - Data Identifier of the requested closed captioning packet; can be any of the following:
Analog signal - 0x5F
SD Signal - 0x5
HD Signal - 0x5F
Waveform Monitors Quick Start User Manual 79
