Monitoring Clos
ed Captioning (CC), Teletext, AFD, and Safe Area Compliance
Usage Notes

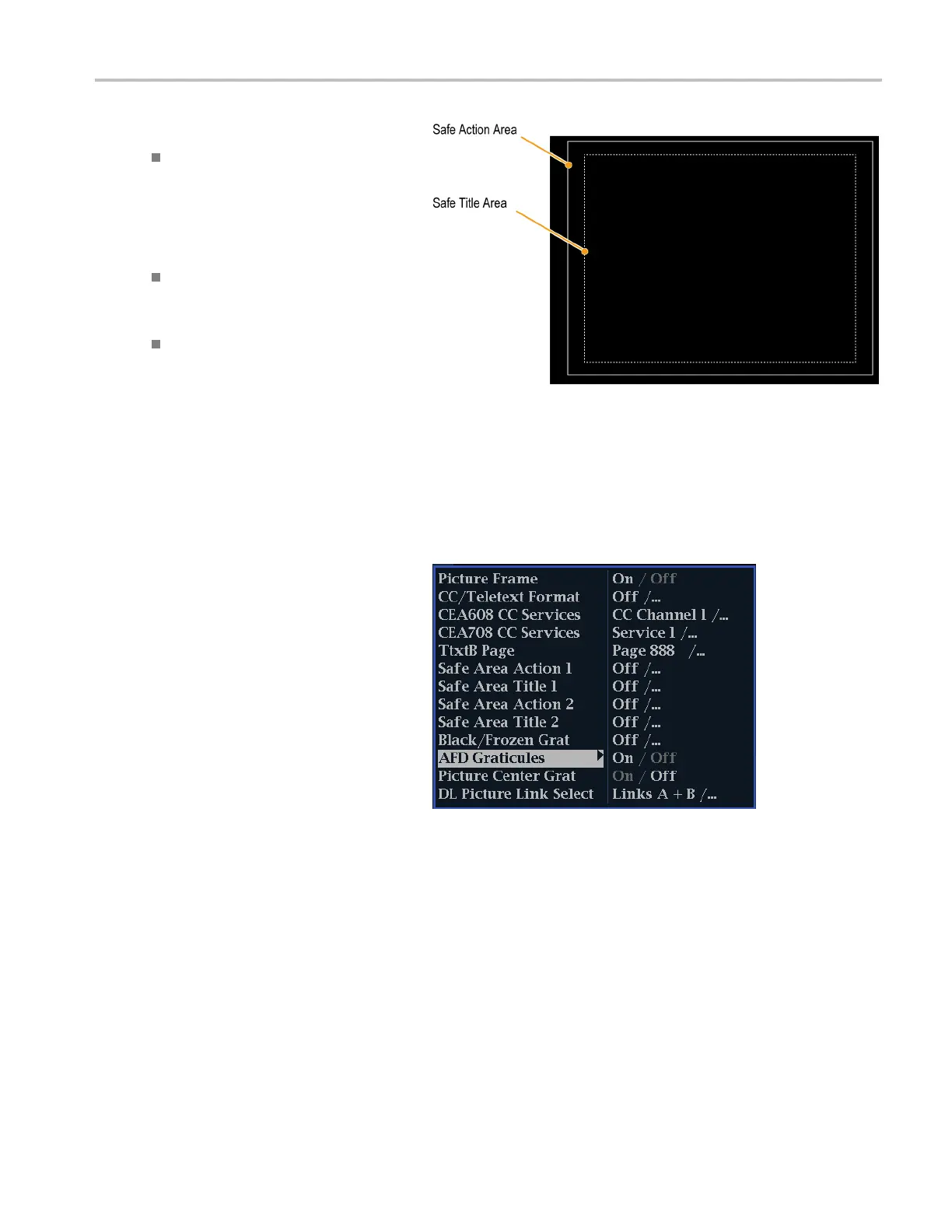

The Safe Action Area denotes the
maximum image area within which all
significant action should be contained;
the Safe Title Area denotes the m aximum
image area within which all significant
titles should be contained.
Safe Area Graticules can globally
be configured to comply to accepted
standards in the C onfiguration menu.
Custom selections for vertical and
horizontal size and offset of the Save
Areas can be set in the Configuration
menu.
Monitoring for AFD Compliance
To display graticules for monitoring for AFD compliance, you will need to turn the graticules on from the pop-up menu in the
Display. Yo u can view information about AFD graticules on the Auxiliary Data Status display.
To Configure AFD Graticules
1. Press and hold the PICT button to
display the Picture menu.
2. Select AFD Graticules and then select
On.
Waveform Monitors Quick Start User Manual 123
