Getting Acquain
ted With Your Instrument
Selecting a Measurement
After you have selected a tile, you can choose what to display in it. The Measurement/Display type is independent
for each tile.

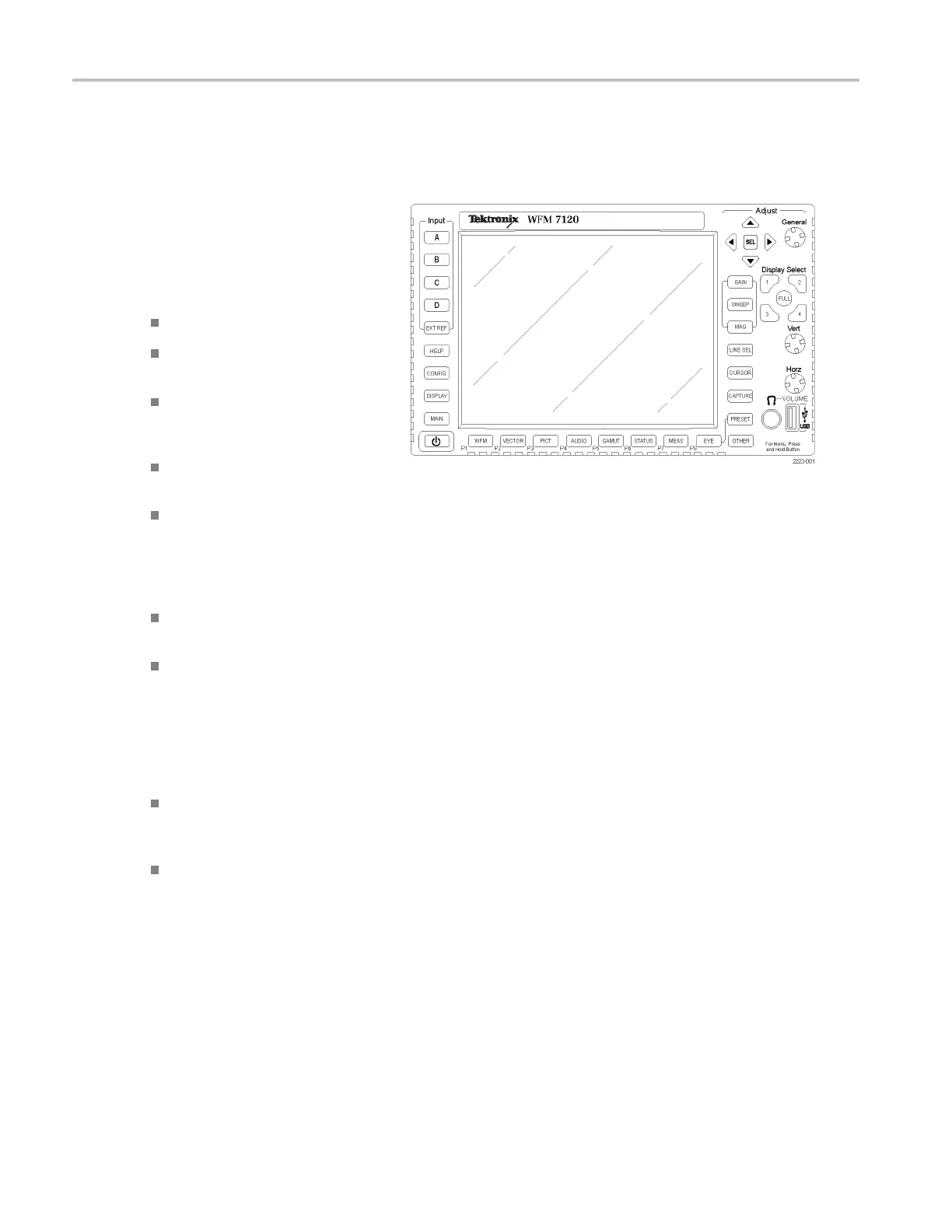

1. Select a tile by pressing one of the
numbered DISPLAY SELECT buttons.
2. Push a button corresponding to the
measurement that you want to display
in the selected tile:
WFM - display of video waveform
PICT - display of the picture
generated by the video signal
GAMUT - display selectable for
three proprietary Tektronix views for
checking the gamut of an SDI signal
VECTOR - display of Vector or
Lightning plots of color signals
AUDIO - optional display of level
(meters) and of a phase (plot) for
monitoring audio signals If option
DDE is present, Surround Sound is
also displayed
STATUS - various displays to view
signal status and information
MEAS - a Tektronix proprietary
display that simplifies timing
correction. Includes Timing
Measure, Data List, AV Delay,
Bowtie, and ANC Data displays
(available on instruments w ith
appropriate option(s) installed)
OTHER - display for checking the
LTC amplitude and noise, and verify
LTC is locked to the video
EYE - display for checking the
transport layer of an SDI signal,
including jitter (operation requires
Option EYE)
3. Repeat steps 1 and 2 until you have
selected measurement displays for all
tiles that you want to define.
20 Waveform Monitors Quick Start User Manual
