Getting Acquain
ted With Your Instrument

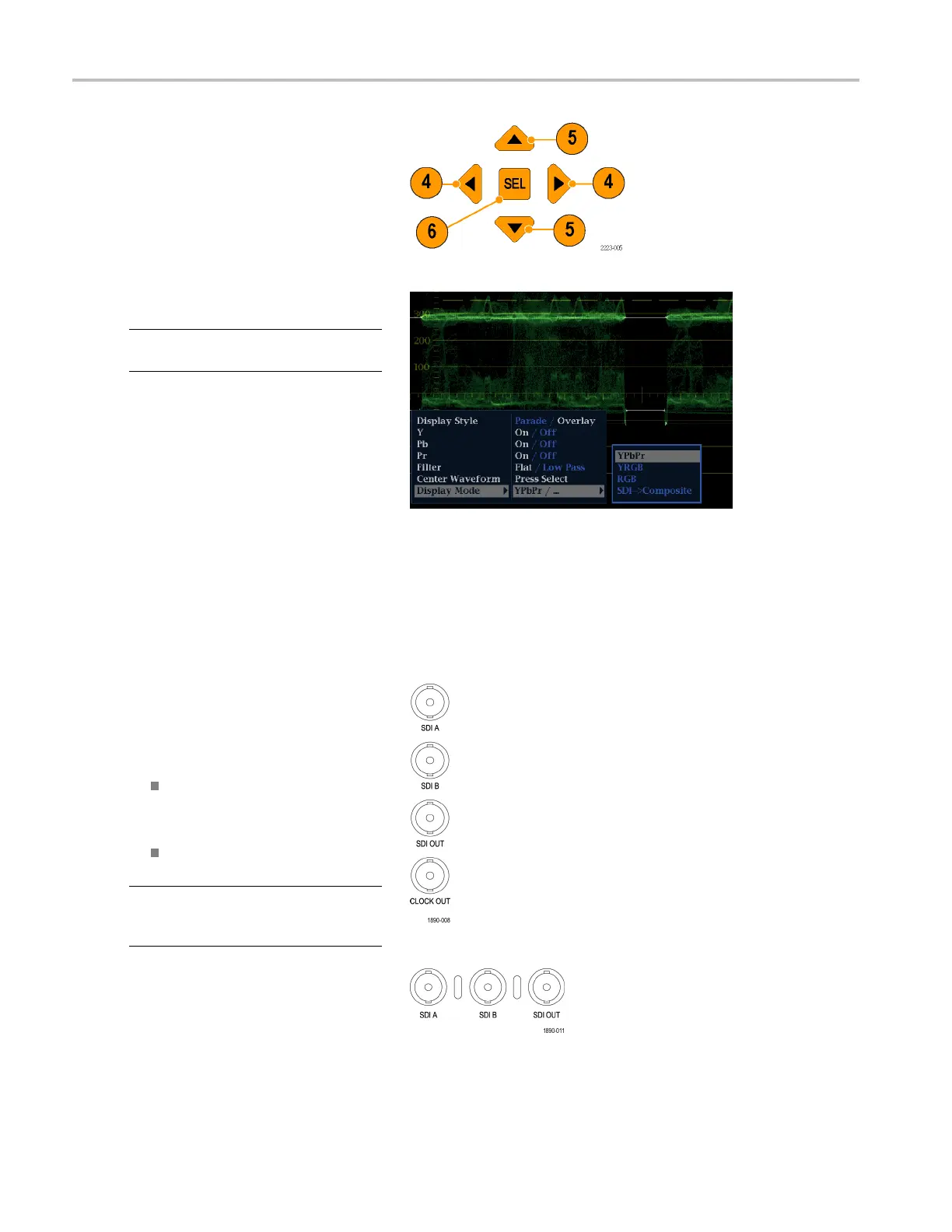

4. Use the right and left keys to traverse
between menu panels. The instrument
surrounds the
panel selected with a blue
border.
5. Use the up and down arrow keys to
select parameters in a menu.
6. Press SEL to set the selected parameter.
The WFM pop-up menu with display mode
set to YPbPr is shown to the right.
NOTE. The se
lections in a pop-up menu
can change depending on settings.
Selecting Signal Inputs
You c an connect SDI (S erial Digital Interface) signals and select them for display. Depending on your instrument model
and the options installed on it, you can also connect high definition component signals, standard definition component
signals, and analog composite signals.
To Select an SDI Input
1. Connect digital component video signals
to the SDI A and SDI B inputs on the
rear panel.
Instruments with Option HD: The
instrument automatically detects
whether input is HD or SD.
Instruments with SD only: Connect
SD signal only.
NOTE. The A and B inputs are separate
inputs and cannot be used as a loop-through
path.
Options EYE/PHY, 3G
Option SD/HD
22 Waveform Monitors Quick Start User Manual
