Tektronix WFM7020 User Manual

Monitoring the S
DI Physical Layer

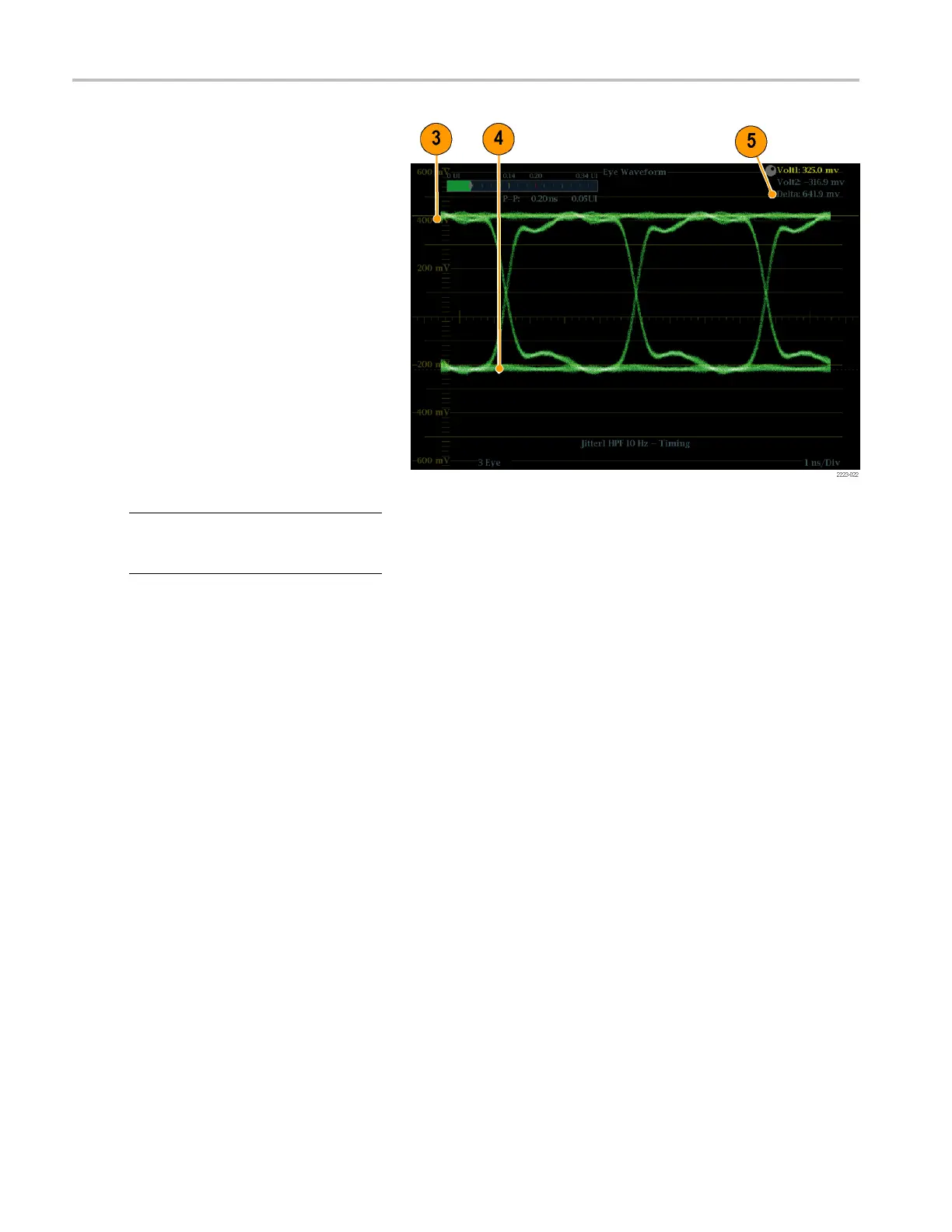

To Manually Measure Eye
Amplitude
1. Perform the initial setup for Eye
measurements. (See page 65, Ta k i n g
Eye M easurements.)
2. Press the CURSOR button to display the
measurement cursors.
3. Position one voltage cursor at the top
part of the waveform, ignoring any
overshoot or undershoot on the rising or
falling edges.
4. Position the second voltage cursor at the
bottom of the waveform, ignoring any
overshoot or undershoot on the rising or
falling edges.
5. Note the amplitude of the eye waveform
that is displayed in the Voltage Cursor
readout.
NOTE. Signal-source amplitudes outside of
±10% of 800 mVp -p can degrade receiver
performance.
66 Waveform Monitors Quick Start User Manual
